| Obradni i proizvodni strojevi i alati - Kategorija i strojevi i alati za obradu drva - kategorija: | Strojevi i alati za obradu drva - Strojevi za obradu drva |
|---|
| Stanje | Novo |
|---|

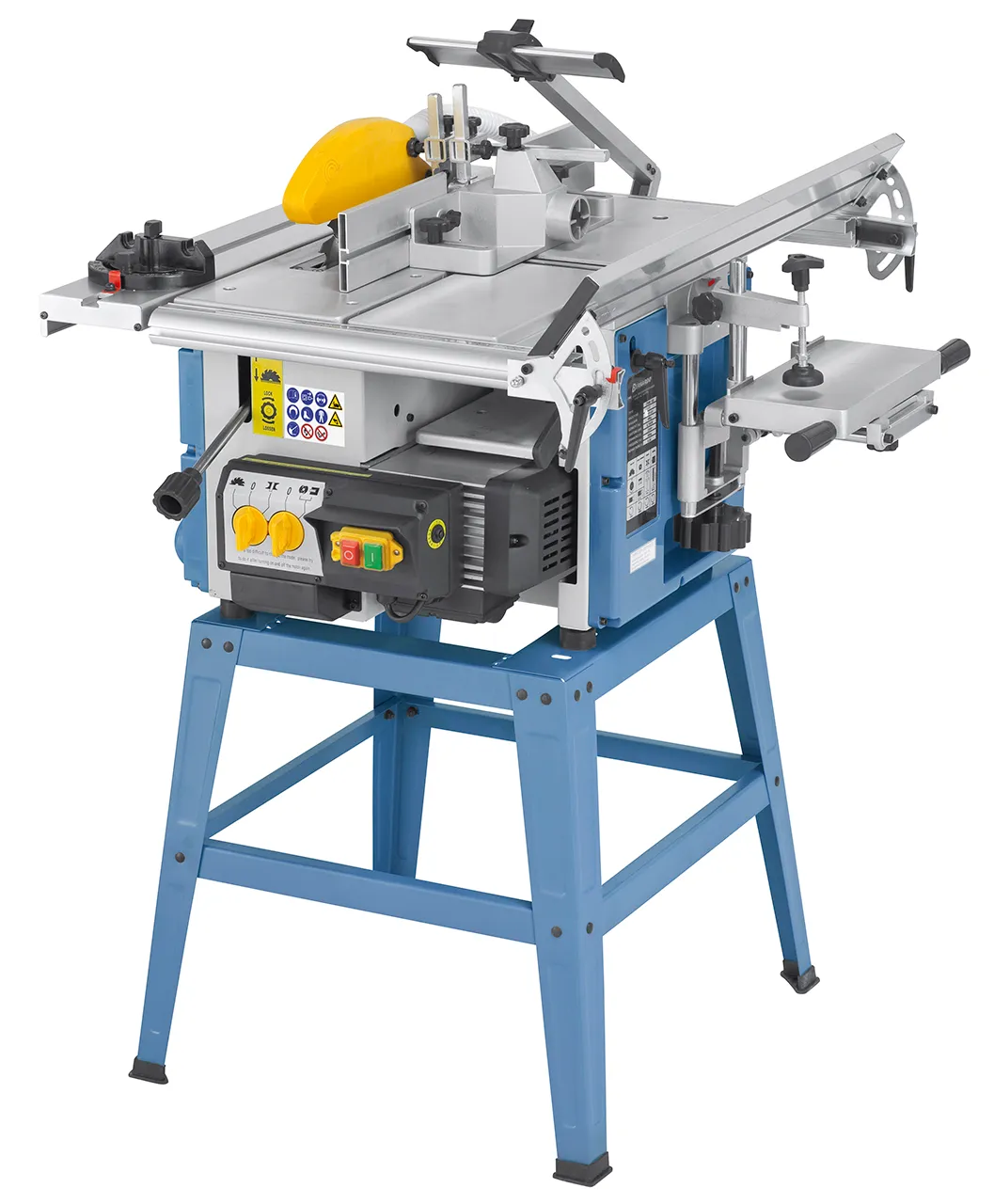

Kombinirani stro 5 operacija CWM 150, cijena plus transportni trošak na vrata.
Planer
Planing width
155 mm
Table length
615 mm
Table height
845 mm
Shaft rotation speed
6000 rpm
Cutter knives
2 pcs.
Planer shaft diameter
45 mm
Planer fence
735 x 100 mm
Fence tiltable
90° to 45°
Max. cutting depth
1,5 mm
Thicknesser
Table length
310 m
Working width
150 mm
Working thickness, min/max.
10 - 92 mm
Max. cutting depth
1,0 mm
Feed speed
7,0 m/min
Dust extraction outlet
50 mm
Circular saw
Table size
420 x 615 mm
Table height
845 mm
Sliding table
745 x 120 mm
Cutting length
510 mm
Max. sawblade diameter
200 x 30 mm
Max. cutting height 90°
65 mm
Cutting width on rip fence
370 mm
Speed main sawblade
4200 rpm
Dust extraction outlet
60 mm
Spindle moulder
Height adjustment
45 mm
End mill collet
6, 8, 12 mm
Spindle speed
9000 rpm
Mortising unit
Table size
260 x 125 mm
Drill collet
6, 8, 10 mm
Max. drill depth
45 mm
Drill width
95 mm
Height adjustment
60 mm
Motor power
1,0 kW (1,36 HP)
Voltage
230 V
