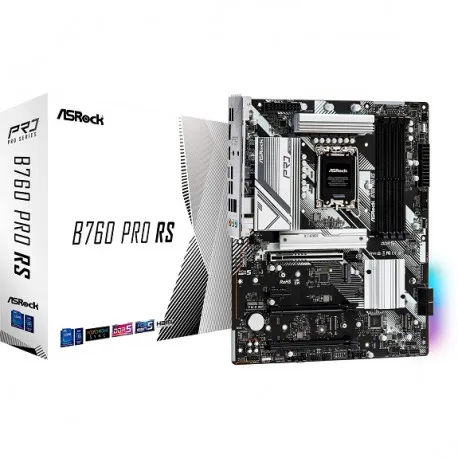

Type Mainboard EAN 4710483942044 Manufacturer no. 90-MXBKS0-A0UAYZ base 1700 Max supported CPUs 1 processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) chipset Intel® B760 slots PCIe x16 3x (davon: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1) PCIe x1 1 form factor ATX use PC power adapter ATX12V (24-Pin + 8-Pin) Storage maximal 128 GB number of sockets 4x DDR5 supported standards DDR5-7800+(OC), 7600(OC), 7400(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600, 5400, 5200, 5000, 4800 MHz channels 2 Maximum memory ranks 2 Memory controller in CPU And Connections (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 USB-A 3.2 Gen 2 (10 Gbit/s) 1 USB-A 3.2 Gen 1 (5 Gbit/s) 4 A notice: The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 or USB 3.1. USB-A 2.0 2 HDMI 1 DisplayPort-Out 1 Microphone 1 Line-In 1 Line-Out 1 RJ-45 1 Connections (internal) HOURS 4 M.2 3 M.2-Module Key M M.2 WLAN 1 M.2 interface PCIe M.2 Long 60 - 80 mm RGB LED Header 2 addressable RGB LED Header 2 4-pin PWM fan 7 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 USB 2.0 2 TPM And SATA-Controller Intel® B760 directly usable RAID levels 0, 1, 10, 5 USB-Controller Intel® B760 Sound Realtek ALC897 AND Dragon RTL8125BG 2.5 Gigabit LAN Further information A BIOS update may be required to support the latest processor cores. Accesories present 2x SATA cables, M.2 mounting material, manual Dimensions Width: 244mm x Height: 305mm
