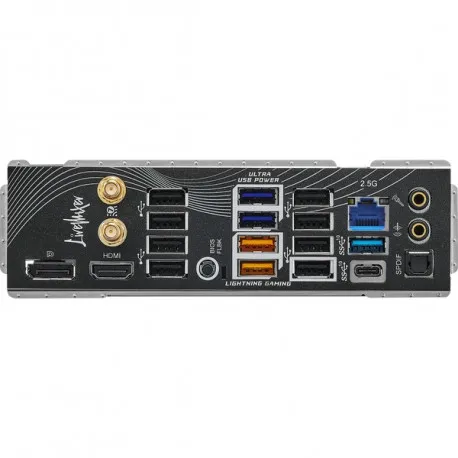

Details Type Mainboard Colour white EAN 4711581490154 Manufacturer no. 90-MXBQU0-A0UAYZ Base AM5 Max. supported CPUs 1 Processor Supported models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxx (Phoenix), Ryzen 5 8xxx (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9x9x (Granite Ridge), Ryzen 7xxx (Raphael), Ryzen 7xxx (Raphael), 7xxx Chipset AMD B850 Slots PCIe x16 3x (thereof: 1x PCIe x16, 2x PCIe x4) BIOS 256Mb AMI UEFI Legal BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin + 4-pin) Memory maximum 256 GB Number of plinths 4x DDR5 Supported standards Up to DDR5-8000+ (OC) Channels 2 Maximum memory storage space 8th Memory controller in CPU Yes Connections (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 USB-A 3.2 Gen 2 (10 Gbit/s) 1 USB-A 3.2 Gen 1 (5 Gbit/s) 4 Note: The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1. USB-A 2.0 8th HDMI 1 DisplayPort-Out 1 Microphone 1 Line-out 1 S/PDIF-Out (optical) 1 RJ-45 1 Bluetooth Yes Wi-Fi Yes Connections (internal) SATA 2 M.2 3 M.2 Module Key M M.2 Wi-Fi 1 M.2 interface PCIe M.2 length 30 - 80 mm RGB LED Header 1 addressable RGB LED Header 3 4-pole PWM fan 6 6 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 4 USB 2.0 4 TPM Yes SATA controller AMD B850 directly usable RAID level 0, 1, 10 USB controller AMD B850 Onboard graphics The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. Sound Realtek ALC1220 LAN Dragon RTL8125BG 2.5 Gbit/s Wi-Fi 7 Note To support the latest processor cores, a BIOS update may be required. WEEE number 54978142
