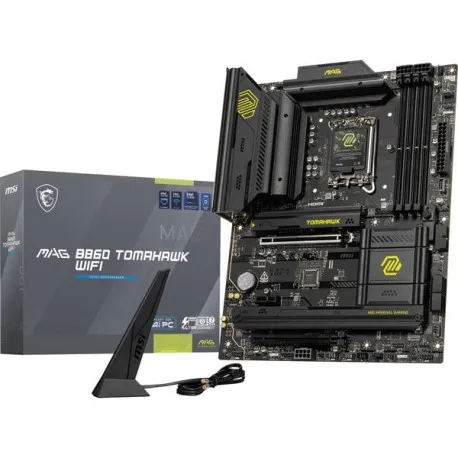

Details Type Mainboard EAN 4711377279642 Manufacturer no. 7E39-001R Base 1851 Max. supported CPUs 1 Operating system Support Windows 10 ready, Windows 11 ready Processor Supported models Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 Chipset Intel® B860 Slots PCIe x16 2x (thereof: 1x PCIe x16, 1x PCIe x4) PCIe x1 1 Form factor ATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 256 GB Number of plinths 4x DDR5 Supported standards DDR5-9200 - 6400 (OC), 6400 - 4800 (JEDEC) Channels 2 Maximum memory storage space 8th Memory controller in CPU Yes Maximum data density 8192 Mbit Connections (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1 USB-A 3.2 Gen 2 (10 Gbit/s) 4 Note: The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1. USB-A 2.0 4 Thunderbolt 1 x version 4 HDMI 1 DisplayPort-Out 1 Microphone 1 Line-out 1 S/PDIF-Out (optical) 1 RJ-45 1 Bluetooth Yes Wi-Fi Yes Connections (internal) SATA 4 M.2 3 M.2 interface PCIe M.2 length 42 - 110 mm RGB LED Header 2 addressable RGB LED Header 3 USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 USB-C 3.2 Gen 2 (10 Gbit/s 1 USB 2.0 4 TPM Yes SATA controller Intel® B860 directly usable RAID level 0, 1, 5 USB controller Intel® B860 Onboard graphics The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. Sound Realtek ALC897 LAN Intel® KillerTM E5000B 5G LAN Intel® KillerTM Wi-Fi BE1750x, Bluetooth 5.4 Features 1x Thunderbolt 4 USB-C port with DisplayPort 2.1 and UHBR20 support. Further information To support the latest processor cores, a BIOS update may be required. WEEE number 54978142
