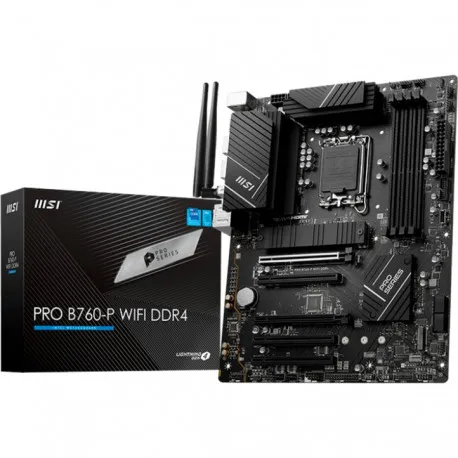

Type Mainboard EAN 4711377028363 Manufacturer no. 7D98-001R base 1700 Max supported CPUs 1 processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i9 13xxxKS (Raptor Lake) chipset Intel® B760 slots PCIe x16 5x (davon: 1x PCIe x16, 1x PCIe x4, 3x PCIe x1) BIOS 256 Mb flash UEFI AMI BIOS form factor ATX use PC power adapter ATX12V (24-Pin + 8-Pin + 4-Pin) Storage maximal 128 GB number of sockets 4x DDR4 supported storage type SDRAM-DDR4 supported standards DDR4-5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC) )/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC) )/ 2133(JEDEC) channels 2 Maximum memory ranks 8 Memory controller in CPU And Connections (external) Mouse/Keyboard Combo (PS/2) 1 USB-A 2.0 4 HDMI 1 DisplayPort-Out 1 Microphone 1 Line-In 1 Line-Out 3 S/PDIF out (optical) 1 RJ-45 1 Bluetooth And WLAN And Connections (internal) HOURS 4 M.2 2 M.2-Module Key M M.2 interface SATA, PCIe M.2 Long 42 - 110 mm RGB LED Header 1 addressable RGB LED Header 2 4-pin PWM fan 7 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 USB 2.0 4 TPM And SATA-Controller Intel® B760 directly usable RAID levels 0, 1, 10, 5 USB-Controller Intel® B760 Onboard Graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 AND Realtek 8125BG 2.5Gbps LAN Intel® Wi-Fi 6E Further information A BIOS update may be required to support the latest processor cores. Dimensions Width: 244mm x Height: 305mm
