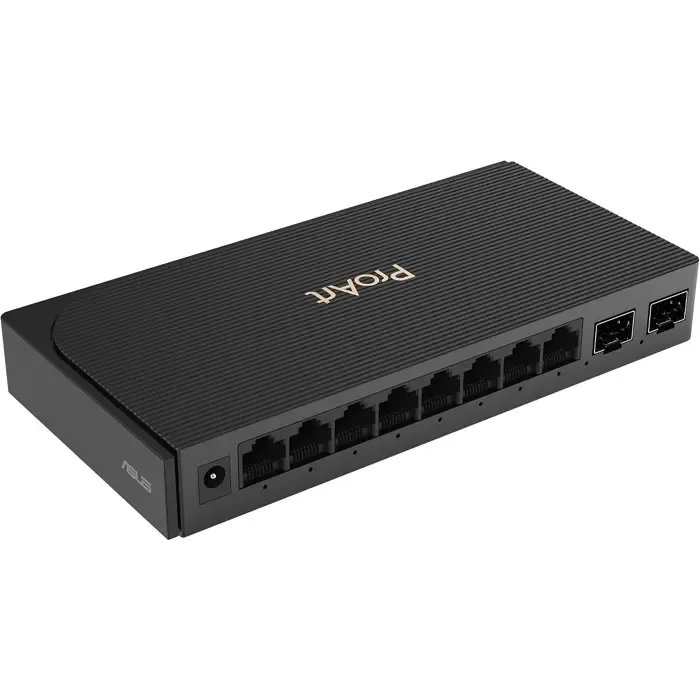

ASUS PQG-U1080

ASUS ProArt Switch PQG-U1080: a compact, unmanaged network switch designed for high-speed creative workstations, small offices, production studios and home networks using NAS servers and multi-gigabit wired connections. Eight 2.5GbE ports allow you to connect computers, workstations, access points and storage devices at speeds faster than standard Gigabit Ethernet.
Two 10 Gb/s SFP+ ports enable fast connection to a server, master switch or other part of the network infrastructure. A total switching bandwidth of 80 Gbps supports simultaneous data transfers between multiple devices without creating bottlenecks.
The device is Plug and Play and requires no configuration. Automatic speed detection and Auto MDI/MDIX simplify the connection of network equipment. Jumbo Frame support up to 10KB helps increase the efficiency of transferring large files, videos and backups.
The fanless design ensures completely silent operation, so the switch can be used directly on a desk or in a recording studio. The metal casing improves durability and heat dissipation, and the small size makes it easy to place the device in limited space.


Device type Unmanaged network switch
EAN 4711636273176
Manufacturer number 90IG0AF0-MO9B00
Model ASUS ProArt Switch PQG-U1080
Number of ports 10
RJ-45 ports 8x 2.5GbE
SFP+ ports 2x 10GbE
Supported RJ-45 port speeds 100 Mb/s, 1 Gb/s and 2.5 Gb/s
Maximum SFP+ port speed 10 Gb/s
Switching bandwidth 80 Gb/s
Packet forwarding rate 59.52 million packets/s
MAC address table 16,000 entries
Jumbo Frame size Up to 10 KB
Unmanaged operation mode
Plug and Play installation
Auto Negotiation Yes
Auto MDI/MDIX Yes
Store-and-Forward mode Yes
Flow Control IEEE 802.3x
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae and IEEE 802.3x
Passive Cooling
Fan No
Noise Level 0 dB
Housing Material Metal
Desk Mount
LED Indicators Power, connection and port activity
Power Supply External power supply
Dimensions 180 x 89.5 x 26 mm
Weight 260 g
Color Black
Set contents ASUS ProArt PQG-U1080 switch, power supply and documentation
