Asus RT-BE59 BE5000

ASUS RT-BE59 BE5000: an efficient dual-band Wi-Fi 7 router designed for a fast home network, office and extensive smart home installations. The total wireless throughput is up to approximately 5,000 Mbps - up to 4,320 Mbps in the 5 GHz band and up to 688 Mbps in the 2.4 GHz band.
Multi-Link Operation technology allows compatible Wi-Fi 7 devices to simultaneously use or efficiently switch between the 2.4 and 5 GHz bands. This allows you to reduce delays, improve connection stability and use the available bandwidth more efficiently. Support for channels up to 160 MHz and 4096-QAM modulation increases performance when streaming video, online gaming, working with the cloud and transferring large files.

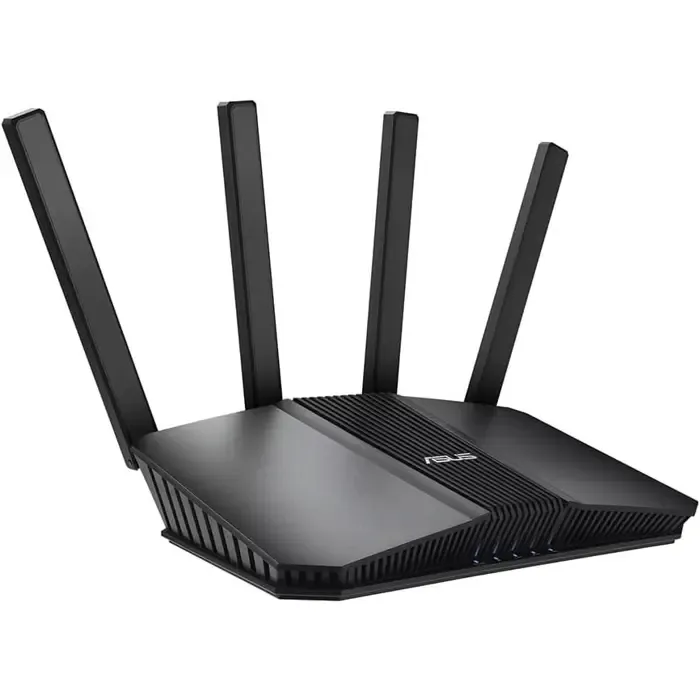

A quad-core 2.0 GHz processor and 1 GB RAM provide adequate power to support multiple devices, security functions, VPN connections and a mesh system. The router uses four external antennas and one internal antenna, and the 3×3 configuration in the 5 GHz band and 2×2 configuration in the 2.4 GHz band improves the performance and range of the wireless network.
The 2.5 Gb/s WAN port allows you to use a high-speed Internet connection, while a separate 2.5 Gb/s LAN port allows you to connect a computer, NAS server or network switch. There are also three Gigabit LAN ports for wired devices.
ASUS AiMesh technology allows you to connect the router with other compatible ASUS devices and create a unified network covering a larger home or office. RT-BE59 can act as the main AiMesh router or as an additional node in a mesh system.
The Smart Home Master function makes it easy to create separate networks for IoT devices, children and devices using a VPN connection. AiProtection, security scanning, malicious website blocking and WPA3 support help protect network-connected devices. Parental Control allows you to schedule Internet access and filter inappropriate content.
The router supports VPN servers and clients using, among others, WireGuard, OpenVPN, IPSec, PPTP and L2TP. Configuration and management are carried out via the ASUSWRT panel in the browser or the ASUS Router mobile application.


Device type Wi-Fi 7 wireless router
EAN 4711636172417
Manufacturer number 90IG0AE0-MO9C00
Model ASUS RT-BE59
Device class BE5000
Standard Wi-Fi Wi-Fi 7, IEEE 802.11be
Supported Wi-Fi standards IEEE 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b and 802.11a
Supported network protocols IPv4 and IPv6
2.4 GHz and 5 GHz frequency bands
Maximum combined Wi-Fi speed Up to 5008 Mbps
Maximum speed on the 5 GHz band Up to 4320 Mbps
Maximum speed on the 2.4 GHz band Up to 688 Mbps
5 GHz band transmission configuration 3×3
Transmission configuration in the 2.4 GHz band 2×2
Channel width Up to 160 MHz
4096-QAM modulation
Multi-Link Operation Yes
OFDMA Yes
MU-MIMO Yes
Beamforming Yes
Quad-core processor 2.0 GHz
RAM memory 1 GB
Flash memory 128 MB
Number of external antennas 4
Number of internal antennas 1
WAN port 1× RJ-45 2.5 Gb/s
LAN ports 1× RJ-45 2.5 Gb/s and 3× RJ-45 1 Gb/s
USB port No
ASUS mesh system AiMesh
Operation modes Wireless router and node AiMesh
Smart Home Master Yes
Separate IoT network Yes
Separate network for children Yes
Separate VPN network Yes
Wi-Fi security WPA, WPA2 and WPA3 Personal and Enterprise
ASUS AiProtection protection system
Parental controls Yes
MAC address filtering Yes
Firewall network Yes
DNS over TLS Yes
WPS support Yes
Supported VPN protocols WireGuard, OpenVPN, IPSec, PPTP and L2TP
Instant Guard function Yes
WAN connections supported Auto IP, static IP, PPPoE, PPTP and L2TP
Network functions DHCP, IPTV, IGMP Snooping, DDNS, DMZ and port forwarding
Traffic monitoring Yes
Management ASUSWRT panel and ASUS Router app
Automatic software updates Yes
WPS, Reset and power buttons
LED indicators Power, WAN, LAN, Wi-Fi 2.4 GHz and Wi-Fi 5 GHz
Power supply 12 V / 2 A
Power supply input voltage 100–240 V, 50/60 Hz
Dimensions 238 × 193 × 59 mm
Weight 506 g
Color Black
Set contents ASUS RT-BE59 router, power supply, RJ-45 Ethernet cable and quick start guide
