Bosch HBA514BB3 Series 4

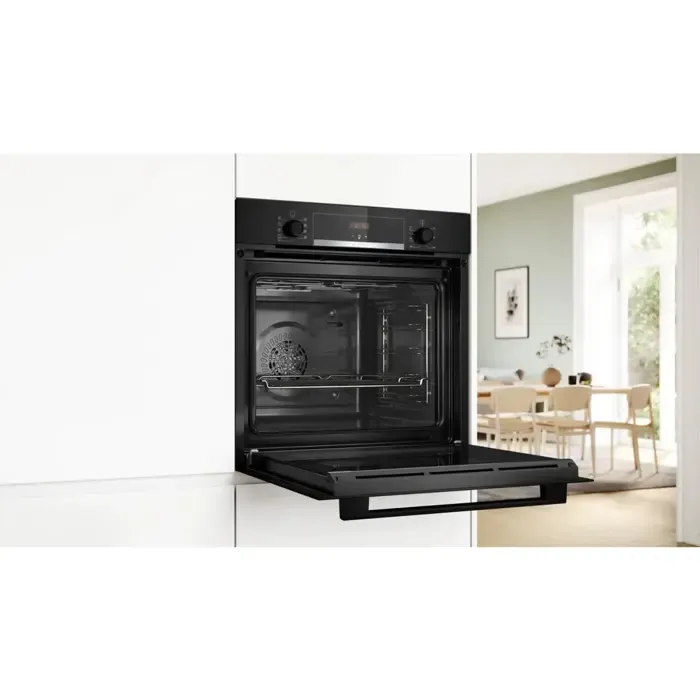

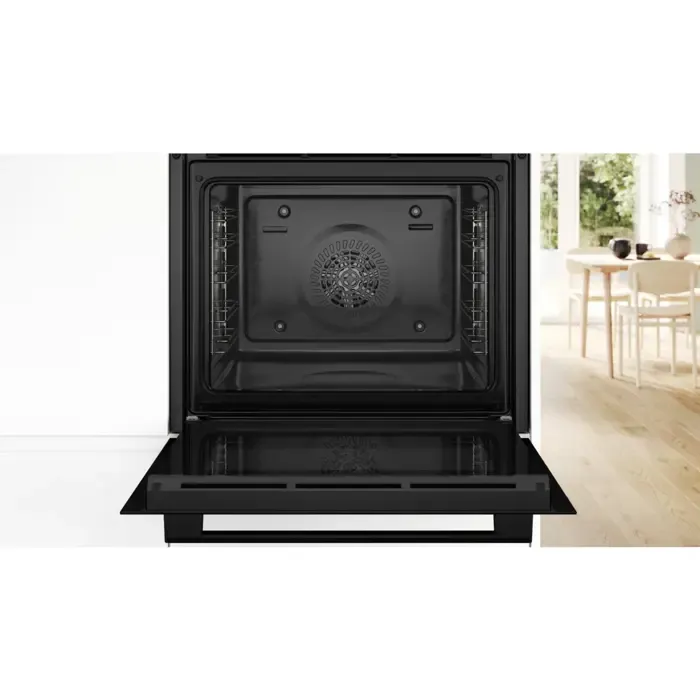

The Bosch HBA514BB3 built-in oven, with a usable capacity of 71 liters, is ideal for any kitchen and can be installed almost anywhere. Seven heating modes, including 3D hot air for perfect results thanks to optimal heat distribution on up to three levels simultaneously, can be conveniently selected using retractable control knobs. Operation with the red LCD display is particularly simple thanks to direct access to timer functions. The enamel coating on the interior oven walls makes cleaning and maintaining the appliance easier. In terms of safety, the HBA514BB3 leaves nothing to be desired, with its built-in child lock and cooling fan.


Energy efficiency class A+ (A+++ - D)
Energy consumption for the hot air/circulating air heating mode of the appliance 0.69 kWh
Energy consumption for the conventional heating type of the device 0.94 kWh
Usable volume of the oven 71 liters
The size of the device L (large) from 65 liters
Noise emissions KA
Type of oven
EAN 4242005464425
Manufacturer No. HBA514BB3
Series Series 4
Mounting type built-in device (integrable)
Operation of the recessed knob
Display/Indicator Red LED display
Oven type: grill, hot air, conventional (top and bottom heat), circulating air
Depth min. 550 mm
Power supply 220 Volt - 240 Volt, frequency 50/60 Hz
Energy consumption during operation 3,400 watts
Feature Red LED display, 3D hot air, recessed knobs, cleaning support
Accessories available 1 x combination grill, 1 x universal pan
Dimensions Width: 59.4 cm x Height: 59.5 cm x Depth/Length: 54.8 cm
Niche dimensions width min. 560 mm, max. 568 mm
Length of the power cable 120 cm
Weight 32.2 kg
