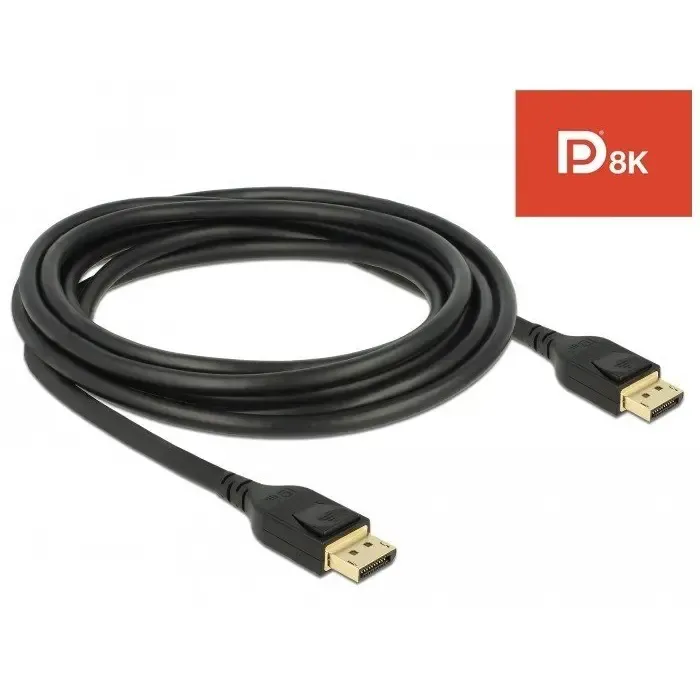

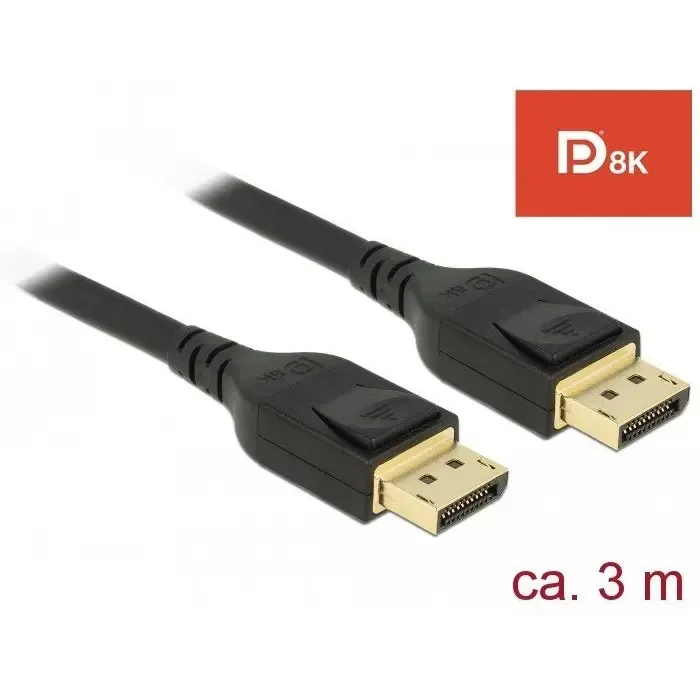

DeLOCK DisplayPort 8K 60Hz

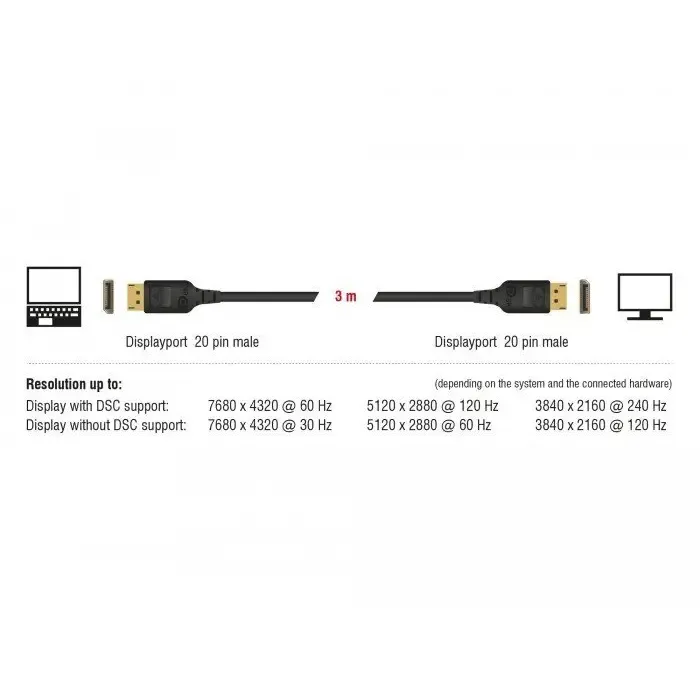

The DisplayPort cable 85661 from Delock is used to connect devices with a DisplayPort interface, such as screens, projectors or televisions, to a PC or notebook with a DisplayPort socket. Supporting a bandwidth of 32.4 Gb/s, content can be played back in 8K Ultra HD (7,680 x 4,320 @ 60Hz), 5K (5,120 x 2,880 @ 120Hz) and 4K Ultra HD (3,840 x 2,160 @ 240Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions thanks to the sampling rate of up to 1,536 kHz.

Type cable
Color black
EAN 4043619856619
Manufacturer no. 85661
Application example For connecting a TV or projector to a PC
Audio / Video area
Connection 1x DisplayPort (plug)
1x DisplayPort (male)
Video classification DisplayPort 1.4
Cable cross section 28 AWG
Taps 2
Properties external
Feature copper cable, triple shielded cable, gold-plated contacts, transmission of audio and video signals
Further information Downward compatible with DisplayPort 1.3, 1.2 and 1.1, pin 20 not connected, cable diameter approx. 7.5mm, data transfer rate up to 32.4 Gb/s, supports Display Stream Compression 1.2 (DSC), HDR, HBR3 (8.1 Gb/s) data rate, HDCP 1.4 and 2.2, up to 32 audio channels for speakers, up to 1,536 kHz audio sampling rate, supports color sampling in 4:4:4, 4:2:2 and 4:2:0 formats
Cable length 3 meters
