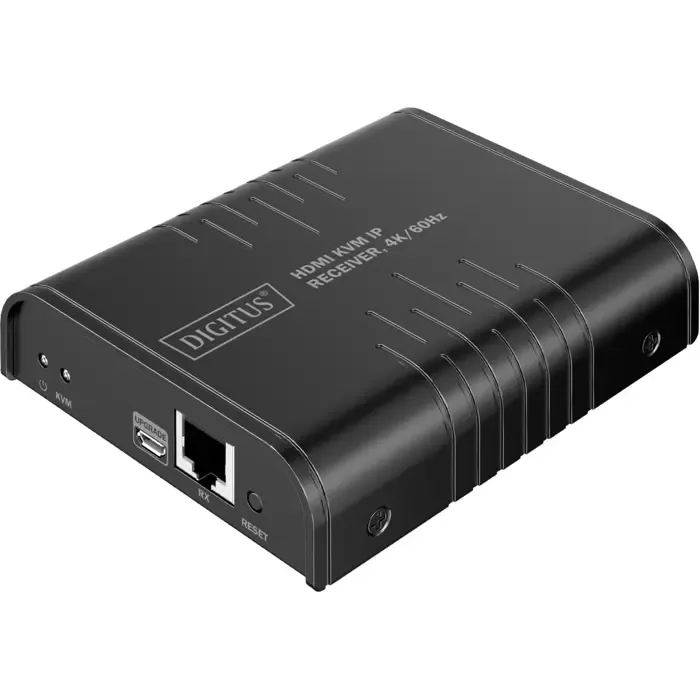

Digitus HDMI KVM IP Receiver (black, 4K/60Hz)

With the receiver units (DS-55356), the HDMI IP Extender Set (DS-55355) can be expanded to include additional receiver units.

Type KVM switch
Color black
EAN 4016032501947
Manufacturer no. DS-55356

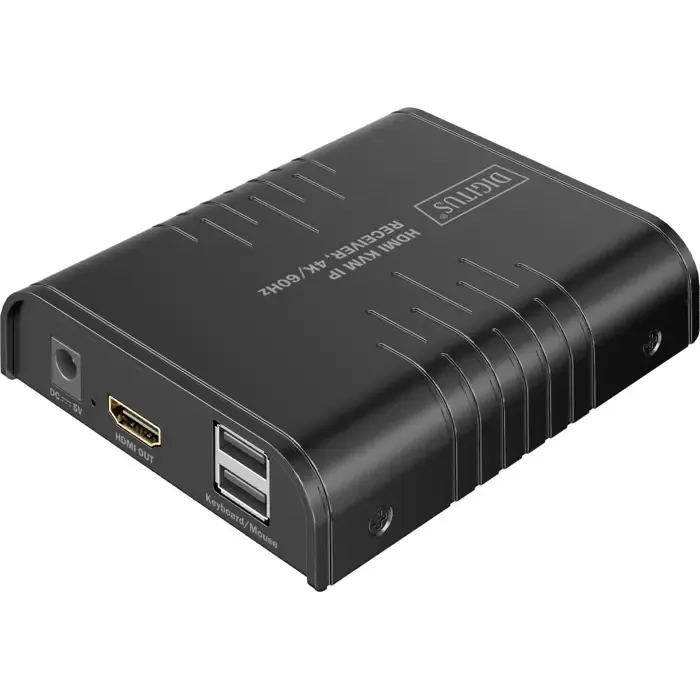

Further information Receiver unit connections (RX): 1x HDMI output (4K/60Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 2x USB-A (2.0) - mouse, keyboard, touch display connection, 1x power supply connection (DC 5V/1A) - external power supply connection, 1x Micro USB - FW update port, 1x reset button, 2x status LED
Accessories available: 1x power supply, EU plug (DC 5V/1A, 1.5 m), 1x operating instructions
Dimensions Width: 89.5mm x Height: 26.3mm x Depth/Length: 109mm
Weight 243 grams
Warnings and safety instructions Safety instructions: If the device is powered by a plug-in power supply, ensure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current).
Only use certified CAT5e or CAT6 cables to ensure stable signal transmission.
For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables.
Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly.
To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference.
Only operate the device within the specified temperature range.
Do not use the device outdoors or in damp or wet environments
Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance
signal quality or system failure.
