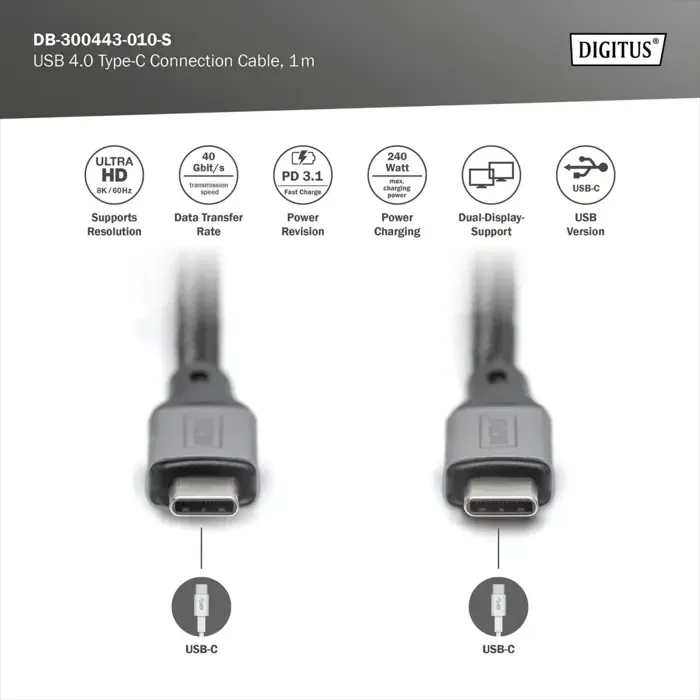

Digitus USB4 Gen 3x2 cable, USB-C male > USB-C male, 40Gbit/s (black/gray, 1 meter, PD 3.1, charging with 240 watts)

The 3rd generation USB 4.0 cable DB-300443-010-S with aluminum connectors from DIGITUS is the all-rounder among the cables. Thanks to the Thunderbolt 3 protocol, PCI Express, DisplayPort and host-to-host transfers can be achieved. This cable can be used to transmit audio/video signals, data and power. The data transfer speed is 40 Gbit/s, so the transfer speed is 8x faster than USB 3.0 (5Gbit/s), 4x faster than USB 3.1 (10 Gbit/s) and 2x faster than USB 3.2 (20Gbit/s). This means that even large data such as films and music can be transferred within seconds. The video signals are transmitted in a maximum of 8K with a refresh rate of 60Hz. In addition, the resolution 4K (3,840 x 2,160) @60Hz (dual mode possible) is also supported. Thanks to the USB Power Delivery Revision 3.1, the fast charging function is ensured. With the appropriate charger, all smart mobile devices can be charged in a short time with a maximum of 240 watts (5A / 48V).

Type cable
Color black/gray
EAN 4016032485865
Manufacturer no. DB-300443-010-S
Made in China
Charging function USB Power Delivery (PD) 240 watts
Application example audio/video/data transmission/high-speed charging function
Data transfer area
Connection 1x USB-C (plug)
1x USB-C (plug)
Protocol USB4 Gen 3x2 (40 Gbit/s)
Cable cross section 30 AWG
Taps 2
Features external, sleeved, USB C connector can be used on both sides
Feature gold-plated contacts, plug with aluminum housing, double shielded, backwards compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0
Further information Supports 8K (7,680 x 4,320) @60Hz, USB Power Delivery Revision 3.1 (PD 3.1) with 48V, 5A and 240 Watt, USB-IF certified, 22 PINS, molded hood, cable outer material PP, cable diameter 5.0mm, tensile strength 4 kg/min, bending radius 60mm
Cable length 1 meter
