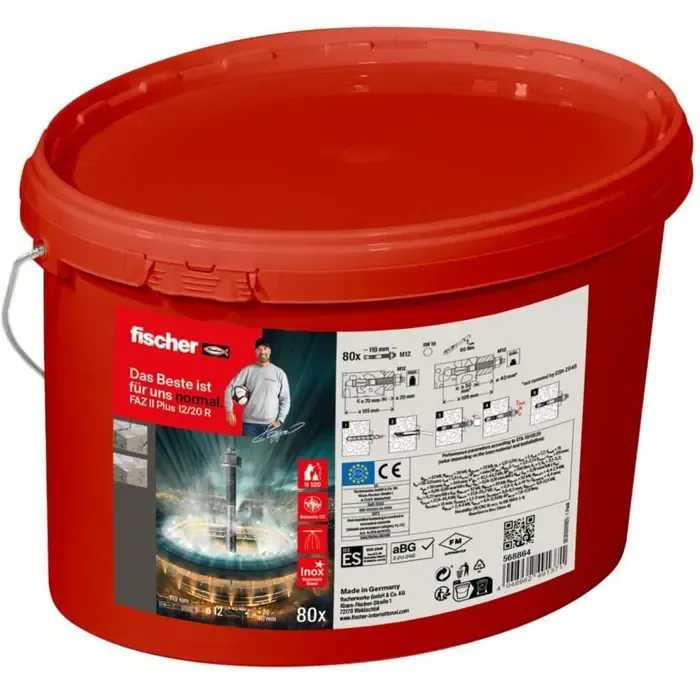

Fischer bolt anchor FAZ II Plus 12/20 R in a bucket (stainless steel, 80 pieces)

The fischer bolt anchor FAZ II Plus 12/20 R is the ideal steel anchor for the highest demands, with high transverse load capacities, for fastening heavy objects in concrete. The steel anchor can be used to fasten heavy loads even in cracked concrete. It enables the absorption of high seismic loads and is used, for example, for machines, lifting platforms, stairs, gates and much more. The FAZ II Plus R can be used particularly flexibly thanks to the variable anchoring depths and easy installation. The steel dowel can simply be hammered in and then tightened with a torque wrench. The proven expansion clip guides the loads particularly safely into the concrete and enables the highest load capacity. The FAZ II Plus R can be set more easily and quickly by eliminating the need for drill hole cleaning (M8 - M24). With the version made of stainless steel R, loads can be secured outdoors. The steel anchor is also ideal, for example, for fastening steel structures, balcony railings, canopies, ladders, cable routes, facades and wooden structures.

Type expansion dowel
Color stainless steel
EAN 4048962491371
Manufacturer no. 568864
Made in Germany
FAZ II Plus series
Quantity 80 pieces
Material A4 stainless steel
Dimensions drill diameter 12 mm
Dimensions dowel length 120 mm
Dimensions drill hole depth min. 109 mm
Dimensions screw-in depth min. 50 mm
Screws included in delivery: thread ? M12, thread length 71mm, washers, nuts SW 19
Container plastic bucket with lid
Application examples: railings, TV consoles
Suitable building materials Concrete, sand-lime solid brick
Feature service life up to 120 years
Further information Installation torque (Tinst) 60 Nm
Note Approved for concrete C20/25 to C50/60, cracked and non-cracked, also suitable for concrete C12/15, concrete C80/95, steel fiber concrete
Optional accessories: bolt anchor setting tools FABS or FA-ST II, filling washer FFD, cap nut FAZ II M12
