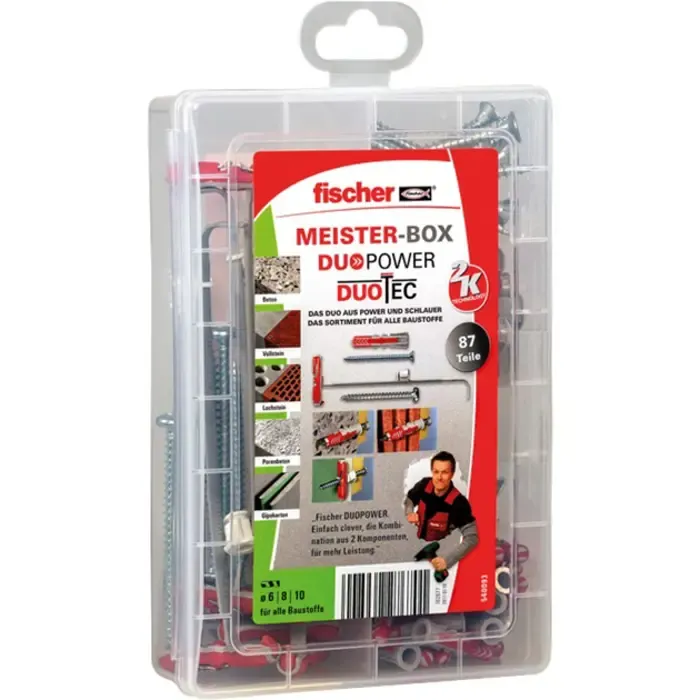

Fischer Meister-Box DUOPOWER / DUOTEC (light grey/red, 87 pieces, with screws)

The fischer Meister-Box DUOPOWER / DUOTEC contains pre-sorted 51 dowels and 35 matching screws. The fischer universal dowel DUOPOWER offers very good holding values ??thanks to 2 components: The gray component made of high-quality nylon automatically activates the optimal functional principle (spreading, folding, knotting) for the best hold, depending on the building material. The expansion wings of the red component support safe expansion and provide additional security to the gray component. The pronounced anti-rotation locks interlock into the building material and prevent rotation in the drill hole. The smooth-running opening ensures that the screw is placed easily and is guided and fixed securely in the screw channel. The fischer DUOPOWER prevents the screw from being overtightened and gives the dowel the best possible feedback (feel-good factor). You can feel that the dowel sits perfectly. The edge formed on the dowel head also prevents the dowel from slipping into the drill hole. The fischer nylon toggle anchor DUOTEC is suitable for high tensile and transverse loads thanks to its 2 components. It offers easy installation with a small drill hole diameter of 10mm and a short tilting element, even in narrow and insulated cavities. It enables very simple pre-assembly because the dowel does not fall into the drill hole even without a screw. There is no need to cut in and thus weaken the plasterboard. The tilting element opens automatically behind the plate and gives it its load-bearing capacity. Thanks to the flexible screw holder made of stainless steel, the toggle dowel can be used with wood and chipboard screws or metric hook and threaded rods with lock nuts. It can also be used when drilling holes in solid building materials, where it works like an expansion anchor. The supplied screw with pan head is optimally matched to the fischer tilting dowel DUOTEC. This enables perfect hold.

Type universal dowel, toggle dowel
Color light grey/red
EAN 4048962276701
Manufacturer no. 540093
DUOPOWER / DUOTEC series
Quantity 87-piece assortment
Material 2-component nylon
Dimensions drill diameter from 6 mm to 10 mm
Dimensions dowel length from 30 mm to 50 mm
Screws Suitable types wood screws, chipboard screws, hanger screws
Screws suitable diameters from 4mm to 8mm
Screws Included in delivery: 20x countersunk screws 4.5x40, 10x countersunk screws 5x60, 6x panhead screws 5x70
Container plastic box
Contents 30x DUOPOWER 6x30, 15x DUOPOWER 8x40, 6x DUOTEC 10
Application examples: bathroom and toilet facilities, pictures, mailboxes, extractor hoods, wardrobes, curtain rails, wall cabinets, kitchen wall cabinets, light mirror cabinets, light wall shelves, lights, shelves, heavy hanging baskets, TV consoles, vanity fixtures
Suitable building materials Concrete, gypsum building boards, gypsum fiber boards, gypsum plasterboards, hollow ceilings made of brick/concrete, hollow bricks, sand-lime perforated bricks, solid sand-lime bricks, solid lightweight concrete bricks, natural stone, aerated concrete, chipboard, solid gypsum boards, solid bricks
Feature DUOPOWER: Safe functions for solid (spreading), perforated and panel building materials (flaps/knots); DUOTEC: Collar sleeve strengthens the drill hole and enables significantly higher transverse loads
Further information The Meister box made of high-quality, impact-resistant plastic is ideal for workshops and construction sites. The transparent lid allows you to see everything at a glance. The fischer Meister box can be closed tightly and can be refilled with dowels.
Note With edge, suitable for pre-positioned installation. The required screw length results from the dowel length + attachment thickness + 1 x screw diameter
