Homematic IP inclination & vibration sensor (HmIP-STV), opening detector (white)

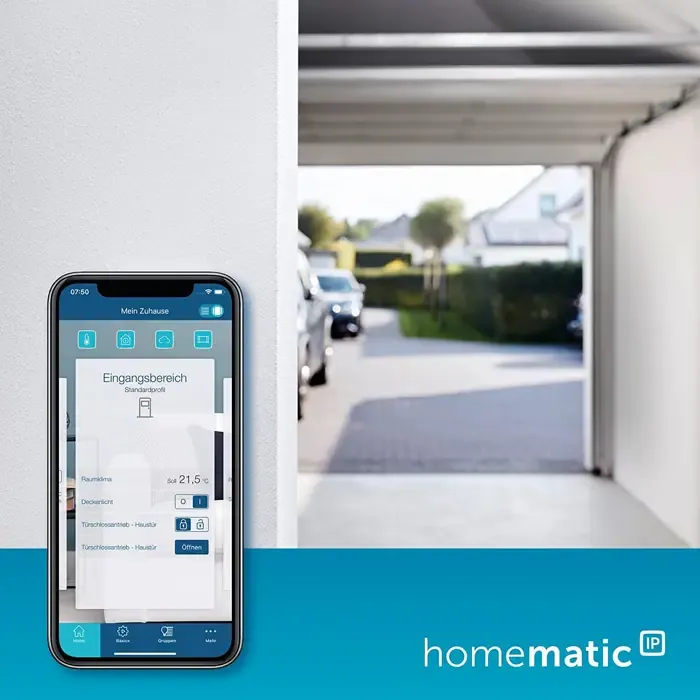

The compact sensor detects changes in position or vibrations and can take on a variety of tasks in the smart home. The reliable monitoring of, for example, garage doors, windows or mailbox flaps ensures more comfort and security.The highly sensitive sensor detects even the smallest vibrations at the installation location and immediately reports them to the Homematic IP system. The sensitivity of the sensor can be individually adjusted for the respective application. The sensor detects changes in position at an angle of 10 to 45°. Alternatively, it can also be configured as a vibration sensor.Article no.: 1896053


Type opening detector
color white
EAN Code 4047976519798
Manufacturer part number: 151979A0
Smarthome HomeMatic IP
Device features Operation Smartphone App
requires Homematic IP Access Point, CCU3 central unit or a third-party partner solution
Indoor application
Max. reception range (open field) 250 m
Protection Protection class IP30
Operating temperature range -20 - 55 °C
Radio frequency from 868 MHz to 868.6 MHz
Note Operation requires connection to one of the following solutions: Homematic IP Access Point, Central CCU3 or a third-party partner solution
Accessories available Double-sided adhesive strips (2x) and screws (2x), 1.5 V LR03/Micro/AAA batteries (2x), operating instructions
Dimensions Width: 25 mm x Height: 85 mm x Depth/Length: 20 mm
Weight 50 grams
