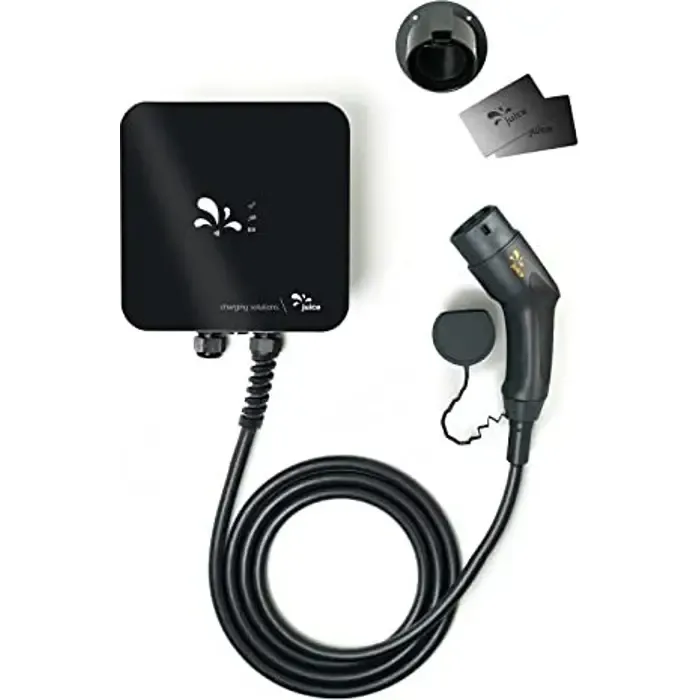

Juice Technology JUICE BOOSTER 3 air Country EU Traveler Plus Set, Wallbox (anthracite/black, 1.4 - 11 kW, 3.1 meter cable)

The JUICE BOOSTER 3 air is a mobile wallbox for use anywhere. The JUICE BOOSTER 3 air makes the full range of functions of smart stationary chargers available regardless of location and is no larger than a can of Coke. Over 30 different adapter plugs are recognized by the patented JUICE CONNECTOR plug system and the charging strength is automatically set correctly. The fully automatic adapter recognition intelligently regulates the current strength. The j+ pilot app allows full control of the JUICE BOOSTER 3 air, e.g. setting the power level, tracking the charging process and much more, from the comfort of your sofa. The integrated electricity meter constantly measures consumption during charging and transmits the data to the j+ pilot app in real time. Each individual charge is permanently saved in the charging history and listed in detail. The Country EU Traveller Plus Set also comes with five different adapters (charging plug type 2, CEE16 400 V, CEE32 400 V, CEE16 230 V, protective contact CEE 7/7 DE). The JUICE CONTROLLER control panel integrated in the type 2 plug consists of a button and an RFID reader. Two pre-paired cards are included for activation via RFID. The integrated direct and alternating current fault detection offers protection against electric shocks, the electronic residual current circuit breaker reliably trips at 30 mA AC and 6 mA DC. This saves the need for a complex retrofitting of an expensive residual current circuit breaker and enables safe charging on the go, even with unknown supply lines. The mobile charging station is completely dust and waterproof (IP67), drive-over-proof with a wheel load of up to 3 tons (IK10), feather-light with a weight of only 700g and compatible with all electric cars that have a Type 2 connection.Art. No.: 1873915


Type Wallbox
Color anthracite/black
EAN Code 4313042877599
Manufacturer part number: EL-JB3AEVE2
Intended use For charging electric vehicles
Area of application Outdoor area without direct sunlight
Installation of mobile charging station
Voltage 230 - 400 V
Charging power 1.4 - 11 kW
Charging mode IEC 61851-1, Mode 2, IEC 61851-1, Mode 3
Number of phases 3
Charging current adjustable Yes
Charging current 6 - 16 A
Charging point(s) 1 (1x cable with type 2 plug)
optional Over 30 self-detecting adapters, lockable wall bracket, extension cable, security lock
Interface(s) WLAN, Bluetooth
Access control RFID
Protection mechanisms RCD DC 6 mA, AC 30 mA, integrated DC residual current protection (FI protection), temperature sensor
Operation app j+ pilot
Display/indicator LEDs (status indicator)
Housing material: anodized aluminum, with rubber caps
IP protection class 67
Ambient conditions Operating temperature -30 - 50 °C
Feature Fully automatic adapter recognition, can handle up to 3 tonnes wheel load, digital electricity meter
Further information Adapter: Supply cable 1.4 meters + adapter approx. 30cm
Note: A qualified electrician is required for installation, repair or maintenance! This person will also be responsible for reporting to the local network operator/energy supplier.
Accessories available JUICE-BAG, 5 adapters (charging plug type 2, CEE16 400 V, CEE32 400 V, CEE16 230 V, protective contact CEE 7/7 DE), 2 RFID cards
Dimensions Width: 53 mm x Height: 213 mm x Depth/Length: 53 mm
Weight 1.8kg
