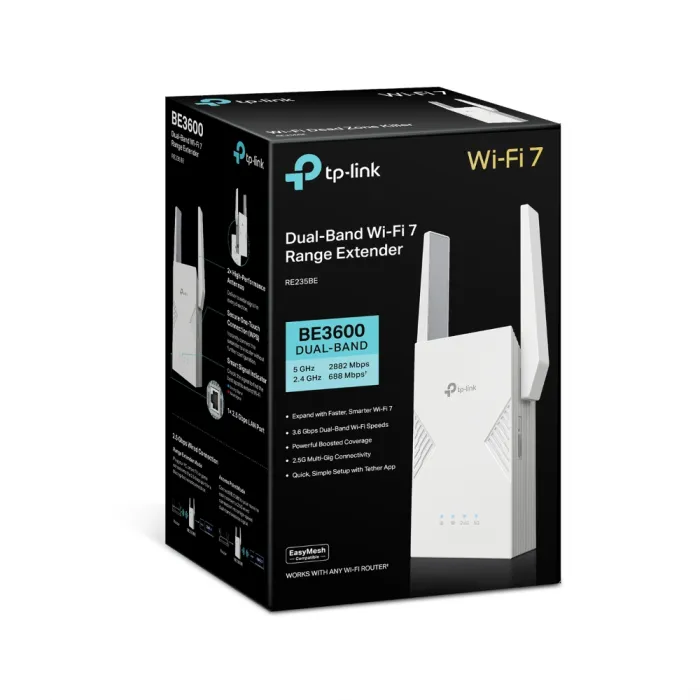

TP-LINK RE235BE BE3600 Wi-Fi 7 Range Extender

<div data-content-type="row" data-appearance="contained" data-element="main"><div data-enable-parallax="0" data-parallax-speed="0.5" data-background-images="{}" data-background-type="image" data-video-loop="true" data-video-play-only-visible="true" data-video-lazy-load="true" data-video-fallback-src="" data-background-lazy-load="" data-element="inner" data-pb-style="PDTG0N1"><div data-content-type="text" data-appearance="default" data-element="main"><p>The RE505X is a Wi-Fi 7 signal booster designed to extend your wireless network with high speed and stability across two frequency bands. With combined speeds of 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, it provides fast connectivity for mobile devices, computers, and smart systems in home or office environments. The device can be used as a Range Extender or as an Access Point, allowing flexible integration into your existing network.
Two external antennas improve coverage and signal quality, while advanced Wi-Fi 7 technologies such as MLO, 160 MHz channel, 4K-QAM, and Multi-RUs contribute to higher speeds, lower latency, and more efficient use of the frequency spectrum. EasyMesh support allows for easy integration into TP-Link Mesh systems, ensuring a seamless transition between access points without any connection interruptions.
The RE505X includes a 2.5 Gbps Ethernet port that allows wired connection of devices such as computers, TVs, or game consoles. WPA/WPA2-PSK and WPA2/WPA3 security features ensure network protection, while browser or app management allows for customizations such as LED control, Access Control, Power Schedule, and Wi-Fi Coverage.
The device operates over a wide temperature range, consumes a maximum of 15 W of power, and is equipped with a WPS button for quick connection to a router. With its simple setup and high compatibility with Wi-Fi 7 networks, the RE505X is an effective solution for improving wireless coverage and stability in a variety of environments.</p> <p><strong>HARDWARE FEATURES</strong>
Interface:
1 × 2.5 Gbps Ethernet port
Buttons:
WPS button
Reset button
Input voltage:
100–240 V ~ 50/60 Hz, 0.3 A
Maximum power consumption:
15 W
Dimensions
97 × 46 × 158 mm (3.8 × 1.8 × 6.2 in)
Antennas:
2 external antennas</p> <p><strong>WIRELESS FEATURES</strong>
Standards:
Wi-Fi 7
IEEE 802.11be/ax/ac/n/a (5 GHz)
IEEE 802.11be/ax/n/b/g (2.4 GHz)
Frequencies:
5 GHz
2.4 GHz
Transfer speed:
2882 Mbps (5 GHz)
688 Mbps (2.4 GHz)
Operating modes:
Range Extender
Access Point
Receive sensitivity — 5 GHz:
11be EHT20 MCS0: –96 dBm
11be EHT40 MCS0: –94 dBm
11be EHT80 MCS0: –91 dBm
11be EHT160 MCS0: –88 dBm
11be EHT20 MCS13: –59 dBm
11be EHT40 MCS13: –57 dBm
11be EHT80 MCS13: –54 dBm
11be EHT160 MCS13: –51 dBm
Receive sensitivity — 2.4 GHz:
11be EHT20 MCS0: –95 dBm
11be EHT40 MCS0: –93 dBm
11be EHT20 MCS13: –58 dBm
11be EHT40 MCS13: –56 dBm
Security:
WPA/WPA2-PSK
WPA2/WPA3
Advanced features:
Multi-Link Operation (MLO)
160 MHz channel
4K-QAM
Multi-RUs
Transmit power (FCC):
2.4 GHz: &lt; 30 dBm
5 GHz: &lt; 30 dBm
Mesh:
EasyMesh supported
Wireless features:
LED Control
Access Control
Power Schedule
Wi-Fi Coverage</p> <p><strong>NETWORK SERVICES</strong>
Enabled by default:
Web Server (HTTP/HTTPS) — Port 80/443 (TCP)
DHCP Server — Port 67 (UDP)
Management via application:
Port 20001 (TCP)
Port 20002 (UDP)</p> <p><strong>OTHER</strong>
<strong>Certificates:</strong> FCC, RoHS
<strong>Package contents:</strong> RE505X, Quick installation guide
System requirements:
Internet Explorer, Firefox, Chrome, Safari, or any browser with JavaScript support
Environment:
Operating temperature: 0–40 °C
Storage temperature: –40–70 °C
Operating humidity: 10–90% RH (non-condensing)
Storage humidity: 5–90% RH (non-condensing)</p></div></div></div> Official manufacturer website: https://www.tp-link.com/en/home-networking/range-extender/re235be/#overview
