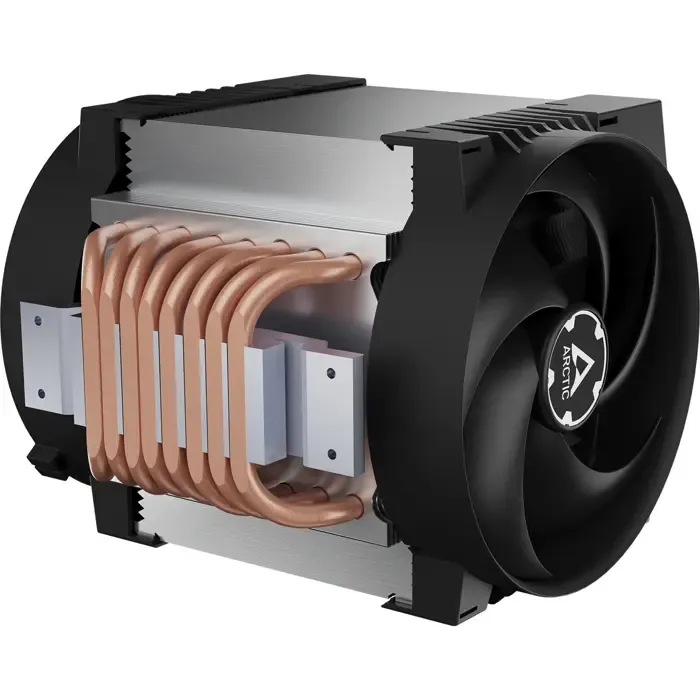

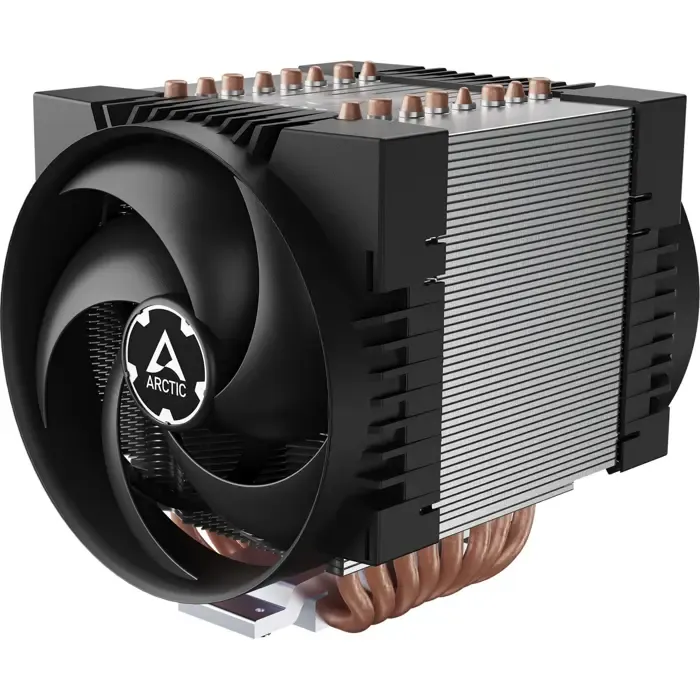

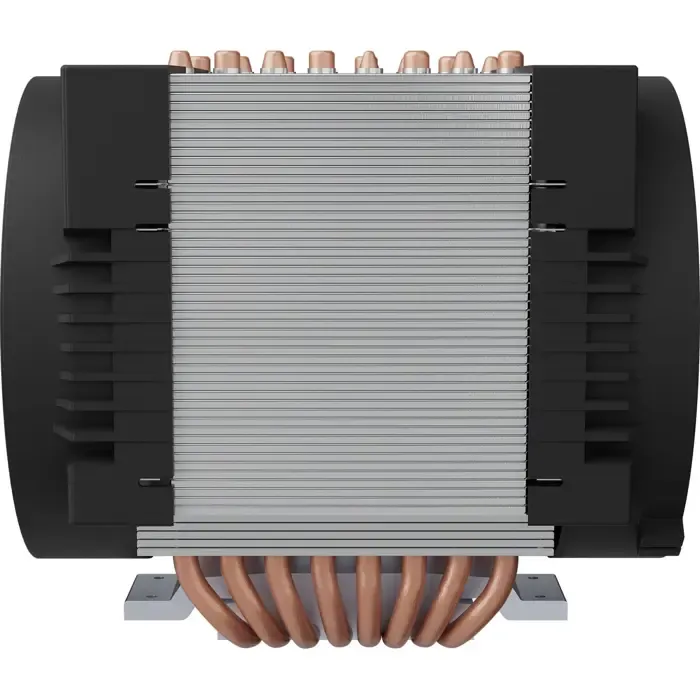

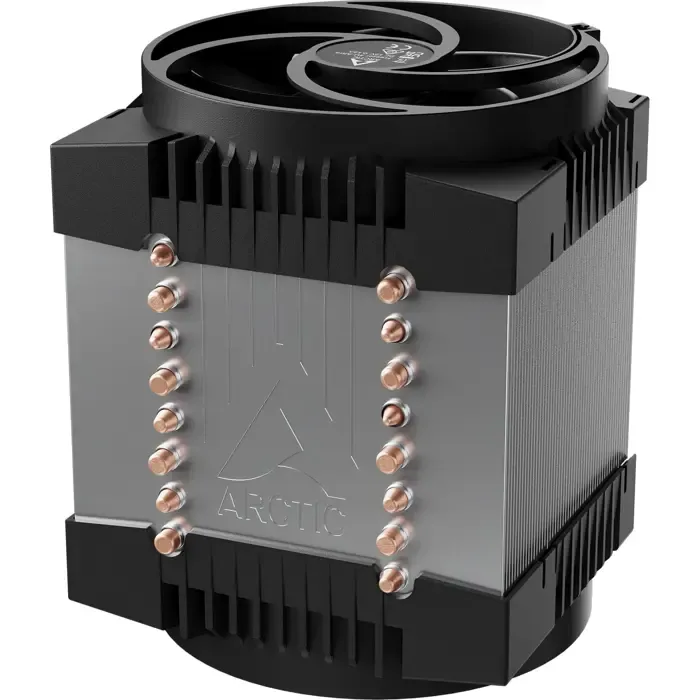

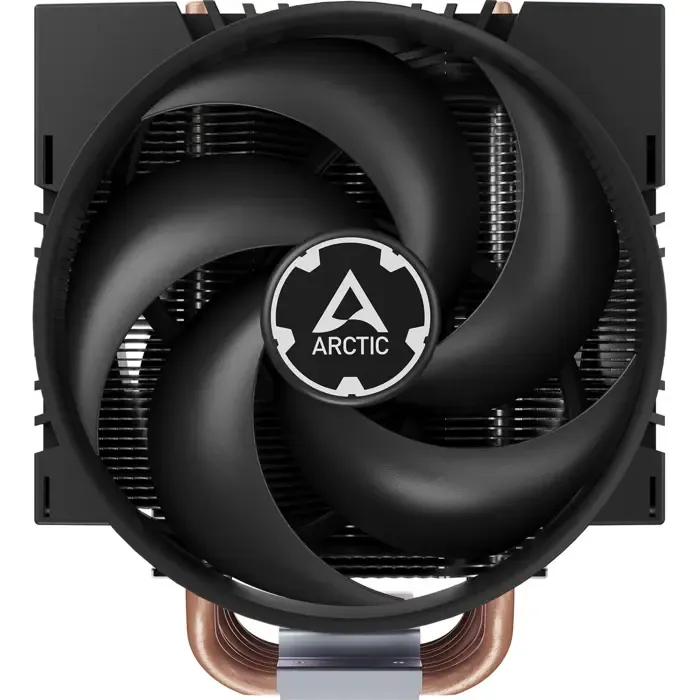

Arctic Freezer 4U-Altra

The ARCTIC Freezer 4U-Altra was specially developed for Ampere Altra and Altra Max processors and impresses with powerful cooling for workstations and servers. Thanks to the platform-specific mounting kit, installation is quick and easy. The large contact surface in combination with powerful heat pipes offers efficient heat transfer and ensures reliable cooling performance even under high processor loads. The proven fans based on the ARCTIC P series have long-lasting double ball bearings and generate high static pressure. This means that the air flow is optimally directed through the deep cooling fins, which further improves heat dissipation. With a cooling capacity of up to 350 watts of CPU waste heat with a power consumption of just 2.88 watts, the Freezer 4U-Altra offers exceptionally high energy efficiency and helps reduce power consumption in professional systems. The cooler is designed for classic 4U server racks as well as most 4U consumer cases with a maximum height of 145 mm. With 53 mm of RAM space, there is enough space for RAM with moderate heatsinks and high system compatibility.

Type CPU cooler
EAN 4895265001406
Manufacturer no. ACFRE00226A
Type of CPU cooler with fan
Use server cabinet 4U and larger
CPU cooler design single tower
Suitable sockets 4677, 4710, 4926, TR4, SP3, SP5, SP6, sTR5, sTRX4, sWRX8
Fastening screwed
Volume 40 dB
CPU up to max. TDP 350 watts
Speed 400 to 2,300 rpm
Material heat sink aluminum, copper
Heat pipe connections 8 pieces.
Fan bearing double ball bearing
Volume flow 122.16 m3/h (71.9 cfm)
Air pressure up to 3.3 mm/H2O
Power connector 4-pin PWM
Voltage range 12 volts
Cable length 30 cm
Dimensions Fan1 Quantity: 2 pieces
Dimensions Overall Width: 1456mm x Height: 145mm x Depth: 124mm
Total weight 1.3 kg
