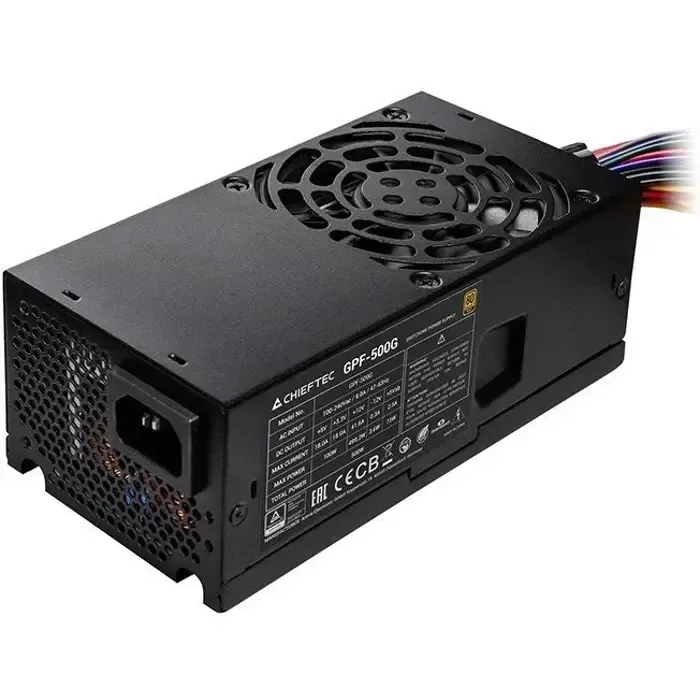

Chieftec GPF-500G (zero watts)

Chieftec GPF-500G 500W: a compact TFX computer power supply designed for small office computers, multimedia systems and other builds requiring an efficient power source in a space-saving format. The 80 PLUS Gold certification confirms high energy efficiency, while active PFC improves power utilisation. The strong +12 V rail provides up to 499.2 W of power and a maximum current of 41.6 A. The power supply is equipped with a quiet 80 mm fan with automatic speed control and a complete set of protection circuits against overload, overheating, overvoltage, short circuits, undervoltage and overcurrent. Two 6+2-pin PCIe connectors also allow compatible graphics cards to be powered.


Device type Computer power supply
EAN 0753263079459
Manufacturer number GPF-500G
Series Chieftec Smart
Rated power 500 W
Form factor TFX
Standard ATX 12V 2.4
Efficiency certification 80 PLUS Gold
PFC Active PFC
Cable design Fixed, non-modular
Motherboard connector 1x 20+4-pin ATX
CPU connector 1x 4+4-pin EPS/ATX12V
PCIe connectors 2x 6+2-pin
SATA connectors 4x
Molex connectors 2x
FDD connector 1x
+12 V rail power 499.2 W
Maximum +12 V rail current 41.6 A
Input voltage 100–240 V
Input frequency 47–63 Hz
Input current 8 A
Cooling Active
Fan size 80 mm
Fan control Automatic
Protection features OPP, OTP, OVP, SCP, UVP, OCP
Dimensions 175 x 85 x 65 mm
Net weight 1.42 kg
Gross weight 1.55 kg
Colour Black
