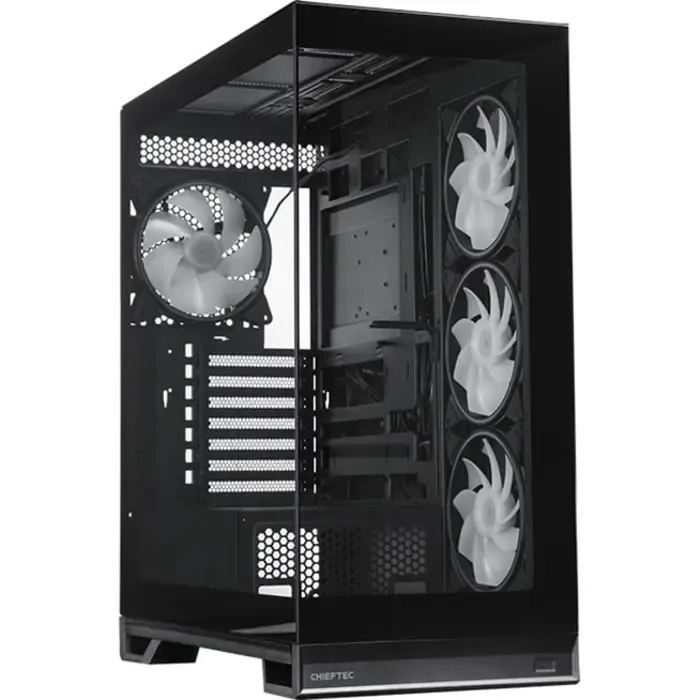

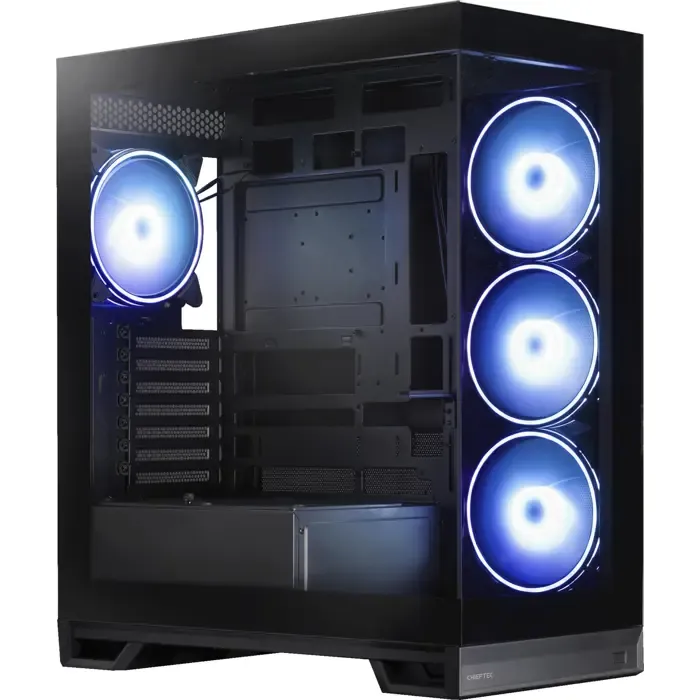

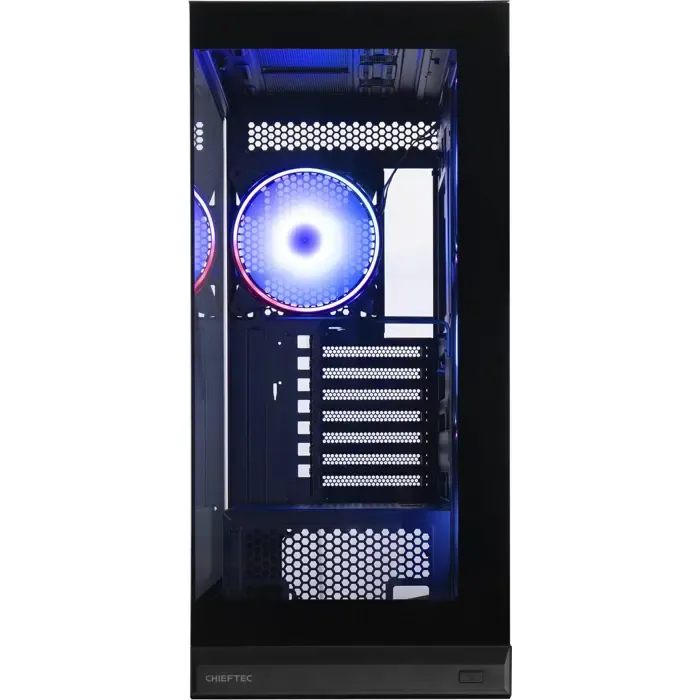

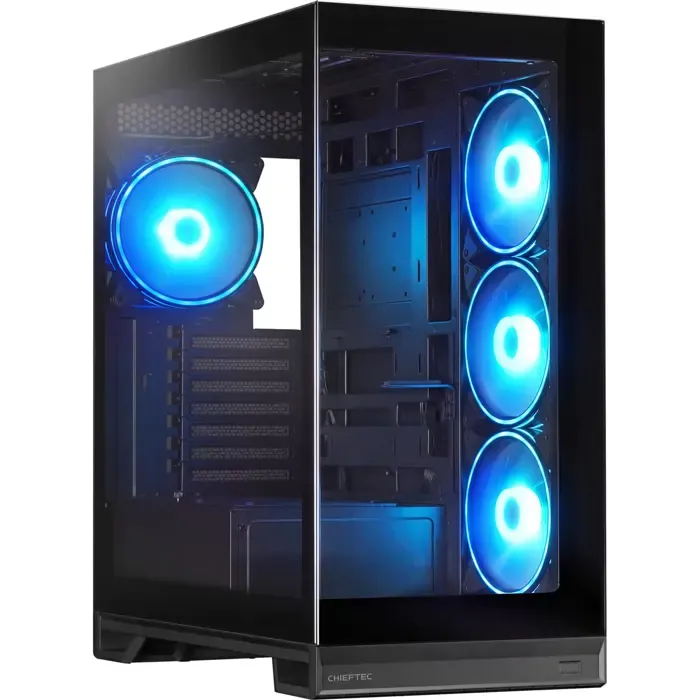

Chieftec VISTA Max (black, tempered glass x 2)

The GX-30B-OP is a panoramic ATX case with a seamlessly integrated, aesthetic and functional stand design. Two power buttons allow for flexible placement, while the easily removable dust filter on the bottom allows for easy cleaning.The case offers flexible hardware compatibility and supports ATX power supplies up to 180 mm long, CPU coolers up to 178 mm high, and graphics cards up to 420 mm long. Four 140mm A-RGB fans are pre-installed on the side and back to provide optimized airflow. Additionally, the case supports a 3.5" HDD and a 2.5" SSD or two 2.5" SSDs. With the HDD/GPU fan cage installed, a 3.5" HDD and a 2.5" SSD can be installed for additional storage, while a 120mm fan can be mounted to further improve GPU cooling.

Tower case type
Color black
EAN 0753263079541
Manufacturer no. GX-30B-OP
Midi tower design
Motherboard form factor ATX
Material 0.7mm SPCC
Window Kit Yes
Internal dimensions plug-in card length maximum 420 mm
Internal dimensions CPU cooler height maximum 178 mm
Internal dimensions power supply form factor ATX
Internal dimensions Power supply length maximum 180 mm
Drive bays 3.5 inches internal
Drive bays 2.5 inches internal
Drive bays 2.5 in 3.5 inches internal
Slots full size 7 pieces
Front connections 1x audio, 2x USB-A 3.2 Gen 1 (5 Gbit/s), 1x USB-C 3.2 Gen 2 (10 Gbit/s)
The designation USB 3.2 Gen 1 corresponds to the previous designation USB 3.1 Gen 1 / USB 3.0.
The designation USB 3.2 Gen 2 corresponds to the previous designation USB 3.1 Gen 2 / USB 3.1.
Back 1 x 140 mm ARGB fan pre-installed, alternatively 1 x 120 mm fan can be installed

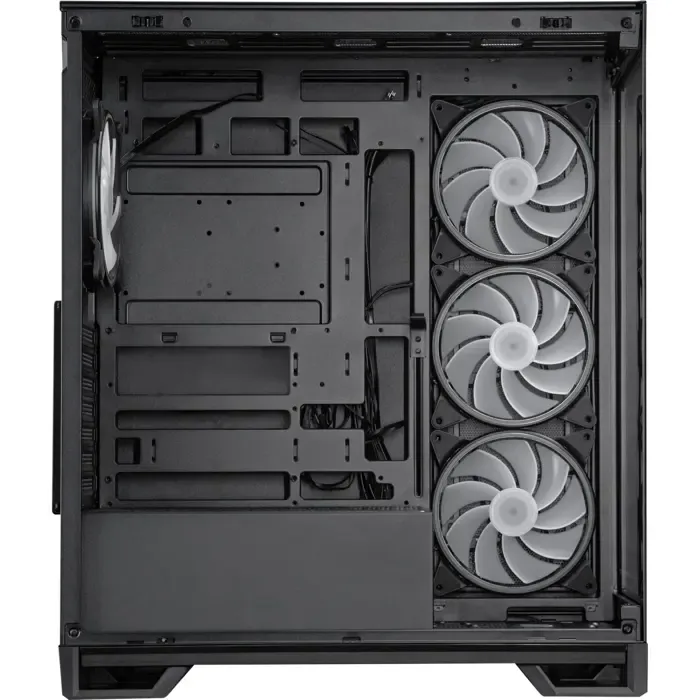

Notes Magnetic dust filter: Bottom, Side: 3 x 140 mm ARGB fans pre-installed, alternatively 3 x 120 mm fans can be installed, Top: 3 x 120 mm fans can be installed, alternatively 3 x 140 mm fans can be installed, Power supply cover: 2 x 120 mm fans can be installed, HDD/GPU fan cage: 1 x 120 mm fan can be installed
Lighting Yes, RGB
RGB standard AURA Sync, Mystic Light, RGB Fusion, RGB LED
Water cooling possible Yes
Water cooling possible. Supported radiators: side: 240/280/360 mm, top: 240/280/360
Rear connection of the motherboard Yes
Feature Two power buttons for flexible placement
Learn more Removable side fan cage and top panel for easy fan installation
Accessories included: screw set, removable dust filter (bottom), user manual, HDD/GPU fan cage
Volume 57 l
Dimensions Width: 23.9 cm x Height: 52.6 cm x Depth/Length: 45.2 cm
