Inter-Tech 4U-4408L (black, 4 height units)

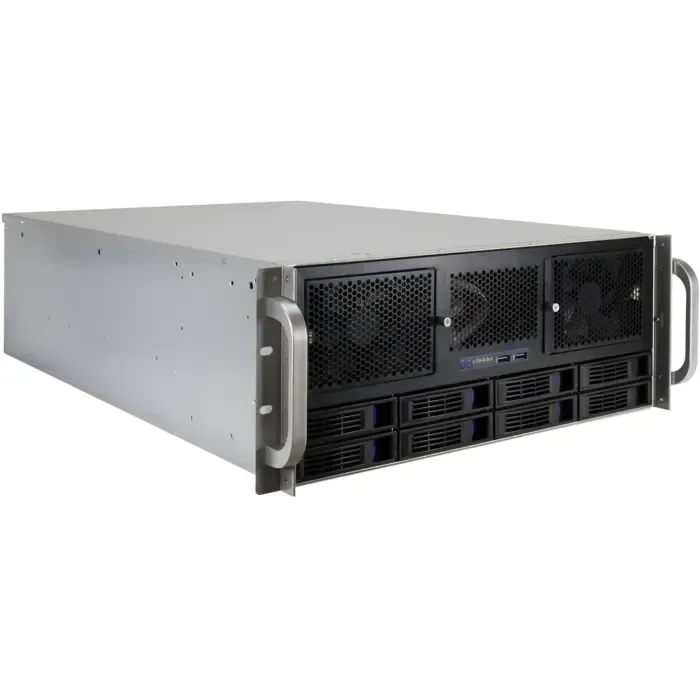

The Inter-Tech 4U-4408L is a 4U rackmount storage enclosure for professional server, NAS, backup, virtualization and data center applications. It combines a high drive capacity with extensive expansion options and a cooling system designed for efficient continuous operation. In the front area, the case has eight hot-swap bays that accommodate both 2.5- and 3.5-inch drives and enable tool-free replacement during operation. This is complemented by an additional 2.5-inch hot-swap slot on the back, which is suitable for the operating system or as a cache drive, for example. There are also internal drive spaces available for additional SSDs or HDDs. The backplanes support SAS and SATA drives with a transfer speed of up to 12 Gbit/s. The case supports motherboards from Mini-ITX to SSI-EEB with a maximum size of 335 × 386 mm. Up to eleven slots are available for expansion cards, with graphics cards able to reach a length of up to 330 mm. CPU coolers can be up to 145mm high. An ATX power supply is installed as standard; Alternatively, a rear panel for redundant 2U power supplies can be retrofitted, making the housing also suitable for highly available server systems. Cooling is provided by three centrally located 120 mm fans and two easily removable 80 mm fans in the front area. The cooling system is supplemented by three dust filters behind the front, which ensures uniform air flow and maintenance-friendly operation. There are also two USB 3.2 Gen1 ports on the front for quick access to external storage media. With dimensions of 485 × 690 × 178 mm (W × D × H), the housing corresponds to the standardized 4U rack format and is suitable for installation in 19-inch server cabinets. The robust steel housing weighs around 13.3 kg and is designed for reliable 24/7 operation. Overall, the Inter-Tech 4U-4408L is aimed at users who need a powerful storage enclosure with hot-swap functionality, high expandability and professional features for server and storage systems.

Type server case
Color black
EAN 4262531060014
Manufacturer no. 88887427
Rack design
Mainboard form factor E-ATX, Mini-ITX, SSI-EEB
Internal dimensions Plug-in card length maximum 330 mm
Internal dimensions CPU cooler height maximum 145 mm
Internal dimensions power supply form factor ATX
Internal dimensions height units 4 U
Drive bays 3.5 inches internal
Drive bays hot swap
Drive bays 2.5 inches internal
Drive bays 2.5 in 3.5 inches internal
Drive bays hot swap
Front ports 2x USB-A 3.2 Gen 1 (5 Gbit/s)
The designation USB 3.2 Gen 1 corresponds to the previous designation USB 3.1 Gen 1 / USB 3.0.
Notes Backplane: 3 x 120 mm fans pre-installed, Behind the front doors: 2 x 80 mm fans pre-installed
Rear connection of the mainboard No
Feature 8 hot-swap removable frames for 2.5" or 3.5" hard drives, additional 1 hot-swap removable frame in the back panel for 2.5" drives, 2x holders for 2x 2.5" HDD/SSD each or alternatively 1x 3.5" HDD, support for up to 11 expansion cards, support for ATX power supplies or optionally for redundant ones 2U power supplies
Further information 2x backplane, 4 hard drives, SAS12 Gb/s, 2x SATA/SAS (SFF8643), 1x 4-pin power connector/backplane
Note cage: 435 x 445 x 177.6mm (WxDxH)
Accessories available: assortment of screws, keys
Optional accessories Optional rear panel for redundant power supplies
Volume 60 l
Dimensions Width: 48.5 cm x Height: 17.8 cm x Depth/Length: 69 cm
Weight 13.3kg
