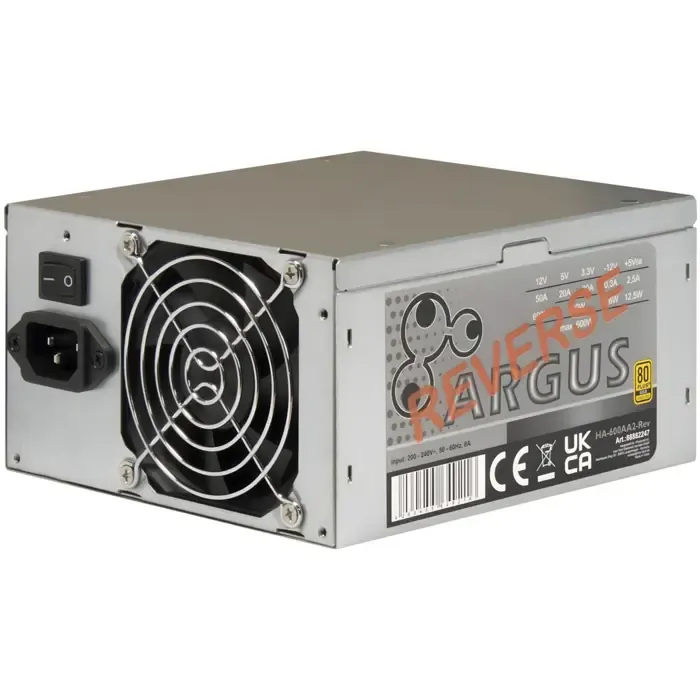

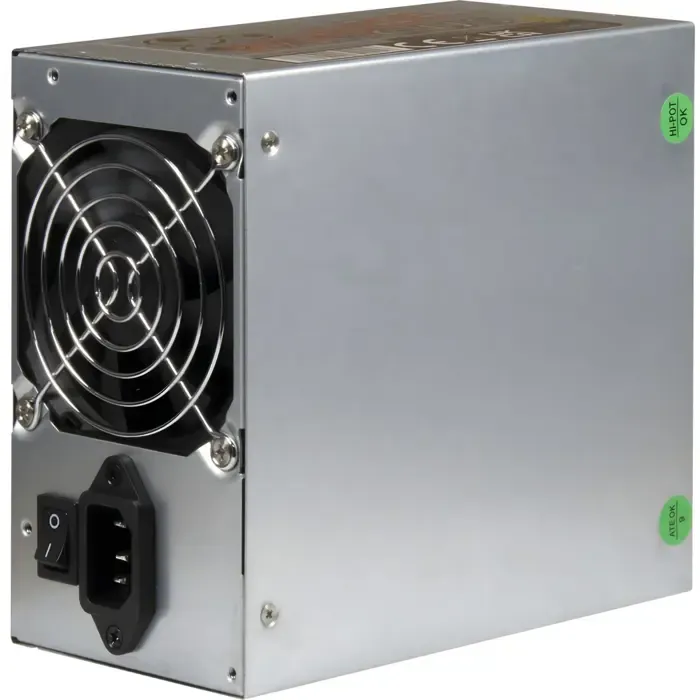

Inter-Tech HA-600AA2-Rev (600 watts)

The powerful Inter-Tech HA-600AA2-Rev 600W ATX power supply was specially developed for use in compact 2U server cases in which the power supply is installed at the front. The counter-rotating fan keeps the direction of the airflow from front to back.

Type PC power supply
EAN 4260455649896
Manufacturer no. 88882247
Total power 600 W
Power +12V total 600 W
Power +3.3V/+5V total 100 W
Performance Efficiency Up to 92.26%
Power input voltage range 200-240 volts
Power input current 8 A at 230 volts / 50 Hz
ATX design
Certification 80 PLUS Gold 230V EU
Current strengths +3.3 V 20 A
Current strengths +5 V 20 A
Current strengths +5 Vsb 2.5 A
Current ratings -12 V 0.3 A
Current strength +12 V total 50 A
Current strengths +12 V1 50 A
Switch 1x power switch
Connectors 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 1x 6+2-pin graphics, 7x 15-pin SATA
Cooling Number of fans 1x 80 mm fan
Protection functions Current surge protection (OCP), Over voltage protection (OVP), Overload protection (OLP/OPP), Short circuit protection (SCP), No-load operation (NLP/NLO)
Feature Opposite rotating 80mm fan
Dimensions Width: 150mm x Height: 86mm x Depth/Length: 160mm
Weight 1.7kg
