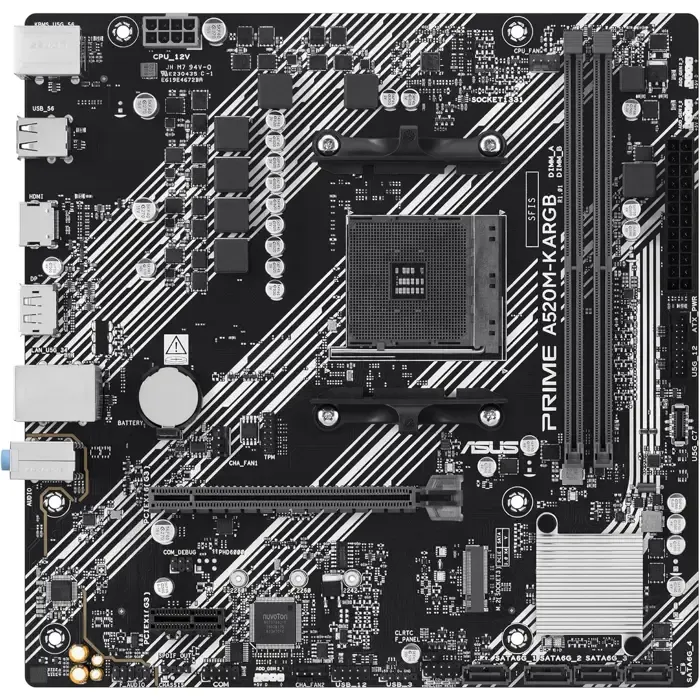

ASUS PRIME A520M-K ARGB - AM4

ASUS PRIME A520M-K ARGB: a micro-ATX motherboard designed for building computers based on AMD Ryzen processors with an AM4 socket. The AMD A520 chipset supports Ryzen 3000, 4000 G, 5000 and 5000 G series processors, making the board suitable for home, office and gaming computers. Two DDR4 slots enable the installation of up to 64 GB of memory operating in Dual Channel mode, with support for frequencies up to 5100 MHz after overclocking.
The M.2 PCIe 3.0 x4 slot provides bandwidth up to 32 Gb/s and supports drives in 2242, 2260 and 2280 formats. Four SATA 6 Gb/s ports allow you to connect additional SSD and HDD drives. The reinforced PCIe 3.0 x16 SafeSlot Core slot is intended for mounting a graphics card, and an additional PCIe 3.0 x1 slot allows you to expand your computer with a network card, sound card or other device.
The board offers HDMI and DisplayPort connectors to support integrated graphics available in compatible AMD processors. The Realtek Gigabit Ethernet controller provides a stable wired connection, and the rear and internal USB connectors also include the ability to output a USB-C 5 Gb/s port to the front panel of the case.
Three addressable ARGB Gen 2 connectors allow you to connect LED strips, fans and other compatible devices. The ASUS Aura Sync system allows you to synchronize lighting effects, while Fan Xpert 2+ allows you to automatically or manually control the fans. The Q-LED Core feature helps recognize problems with the CPU, graphics card or boot device when starting the computer.


Device type Motherboard
EAN 4711636596107
Manufacturer number 90MB1R00-M0EAY0
Model ASUS PRIME A520M-K ARGB
Format Micro-ATX
AMD AM4 Processor Socket
AMD A520 Chipset
Supported Processors AMD Ryzen 3000, 3000 G, 4000 G, 5000 and 5000 G
Memory Type DDR4
Number of Memory Slots 2x DIMM
Maximum Memory Capacity 64 GB
Mode Dual Channel memory
Maximum memory frequency Up to 5100 MHz after overclocking
Graphics card slot 1x PCIe 3.0 x16
Additional expansion slot 1x PCIe 3.0 x1
M.2 slot 1x M.2 2242/2260/2280
M.2 PCIe interface 3.0 x4 and SATA
Maximum M.2 bandwidth Up to 32 Gb/s
SATA ports 4x SATA 6 Gb/s
RAID support RAID 0, RAID 1 and RAID 10
Image outputs 1x HDMI, 1x DisplayPort
Maximum HDMI resolution Up to 4096 x 2160 at 60 Hz
Realtek Gigabit Ethernet wired network
Maximum network speed 1 Gb/s
Realtek 7.1 Surround Sound
Rear USB ports 4x USB 5 Gb/s Type-A, 2x USB 2.0 Type-A
Front USB-C port Supported by internal 5 Gb/s USB port
ARGB connectors 3x Addressable RGB Gen 2
ASUS Aura Sync backlight control
ASUS Fan Xpert 2+ fan control
Q-LED Core diagnostic functions
Board power connector 1x 24-pin ATX
CPU power connector 1x 8-pin 12 V
Dimensions 226 x 226 mm
Color Black and silver
