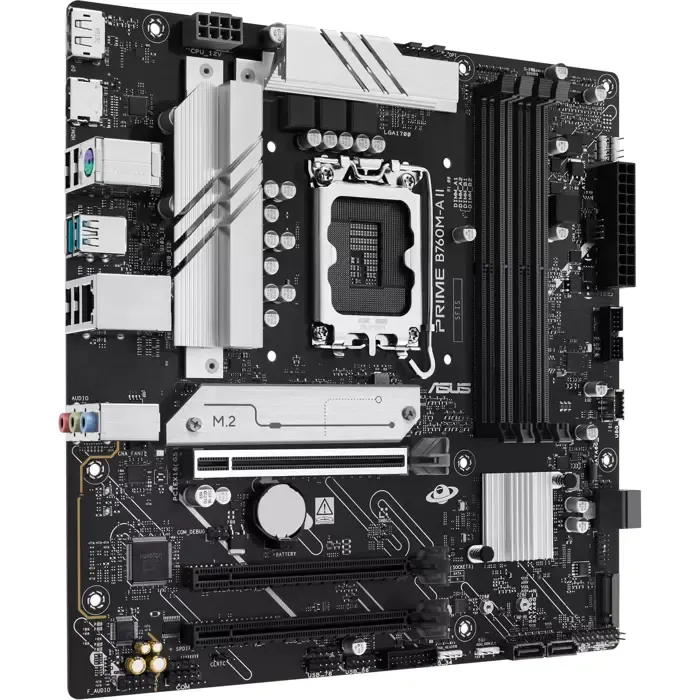

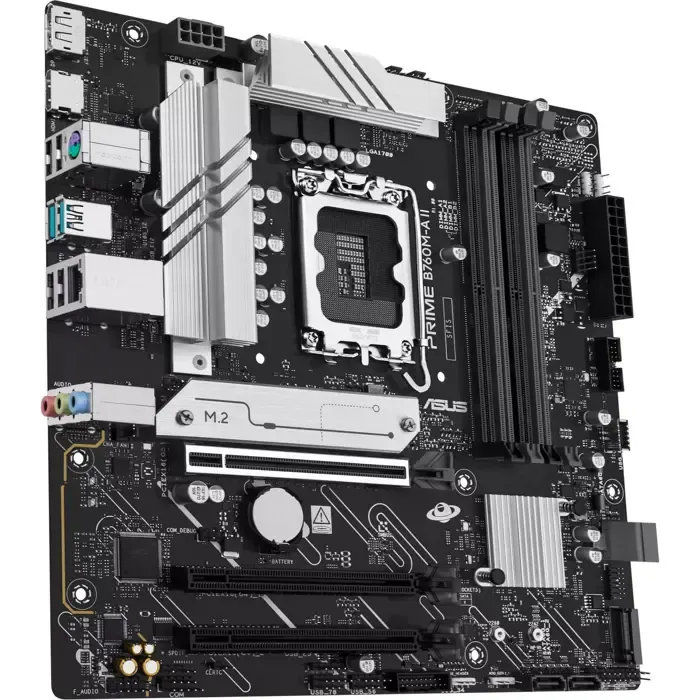

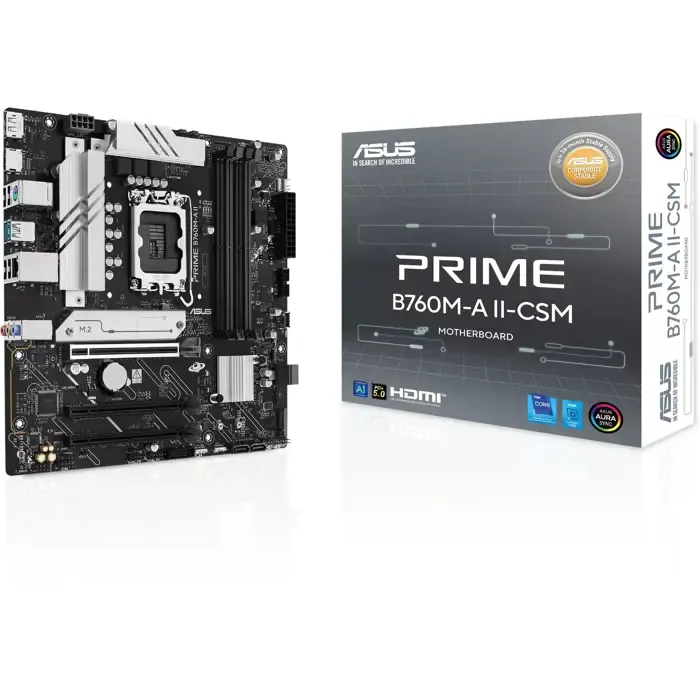

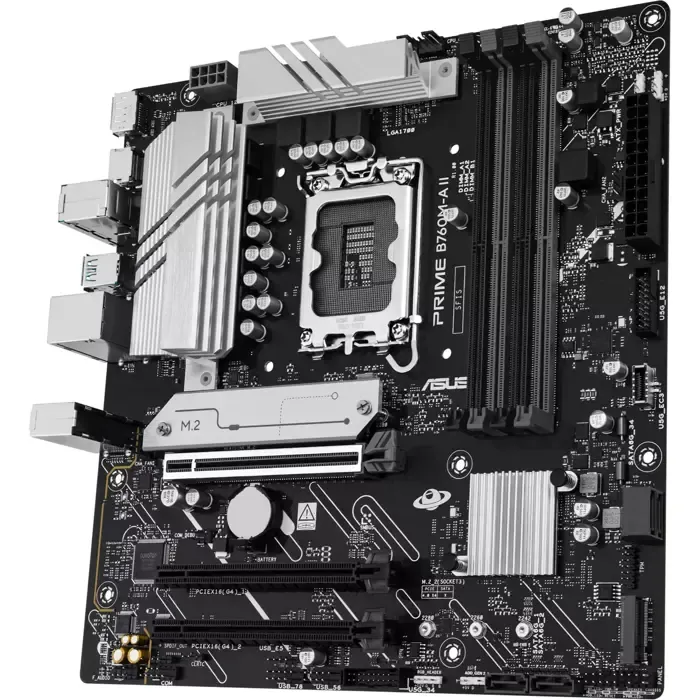

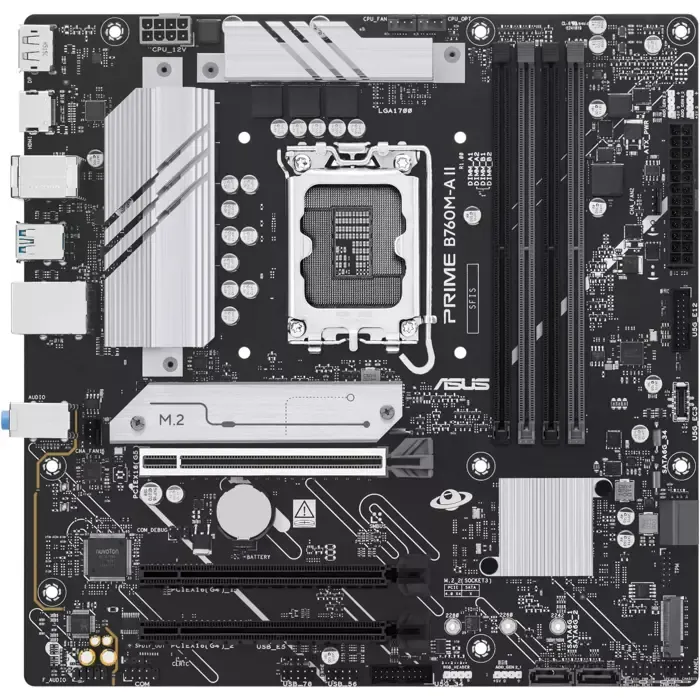

Asus PRIME B760M-A II-CSM (black/silver) - 1700

The ASUS PRIME B760M-A II-CSM motherboard is based on the Intel® B760 chipset and supports Intel® processors for Socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 256 GB of RAM. The ASUS PRIME B760M-A II-CSM also features three PCIe 4.0 x16 slots. The ASUS PRIME B760M-A II-CSM also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports and a number of USB interfaces.

Mainboard type
Color black/silver
EAN 4711636273619
Manufacturer no. 90MB1NG0-M0EAYC
Base 1700
Max. supported CPUs 1
Processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® B760
Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1)
BIOS 128Mb Flash ROM, UEFI AMI BIOS
BIOS EFI BIOS Yes
Form factor μATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards DDR5-7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MT/s
Memory channels 2
Memory Maximum memory ranks 8
Memory memory controller in CPU Yes
Memory Maximum data density 8192 Mbit
Connections (external) Mouse/Keyboard Combo (PS/2) 1
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2
Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) USB-A 2.0 4
Connections (external) HDMI 1
Connections (external) DisplayPort-Out 1
Connections (external) Microphone 1
Connections (external) Line-In 1
Connections (external) Line-Out 1
Connections (external) RJ-45 1
Connectors (internal) SATA 4
Connections (internal) M.2 2
Connections (internal) M.2 module Key M
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connectors (internal) M.2 interface PCIe
Connections (internal) M.2 length 42 - 80 mm
Connections (internal) RGB LED header 1
Connections (internal) addressable RGB LED header 3
Connections (internal) 4-polig PWM fan 4
Ports (optional) USB 3.2 Gen 1 (5Gbps) 4
Ports (optional) USB-C 3.2 Gen 1 (5 Gbit/s 1
Ports (optional) USB 2.0 5
Connections (optional) TPM Yes
RGB Standard AURA Sync
SATA controller Intel® B760
Directly usable RAID levels 0, 1, 10, 5
USB controller Intel® B760
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound High Definition
LAN Realtek 2.5Gb Ethernet
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244mm x Height: 244mm x Depth/Length: 36mm
Weight 690 grams
