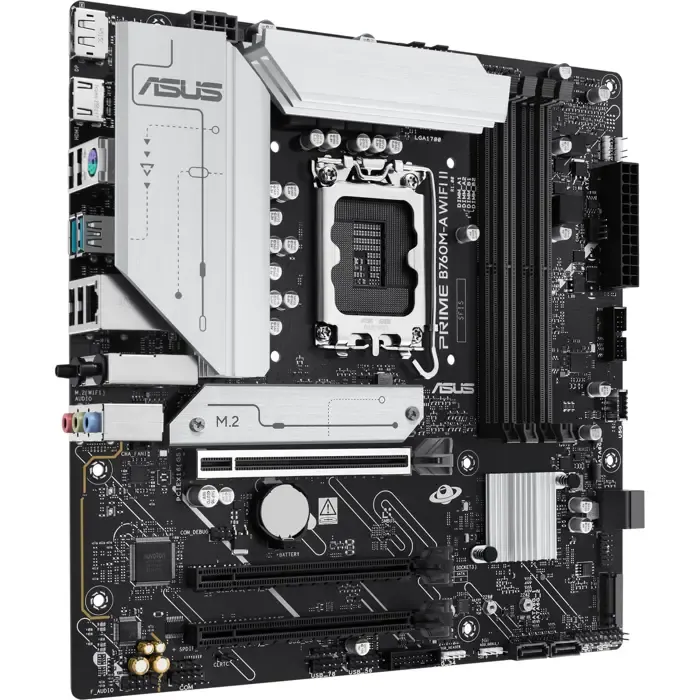

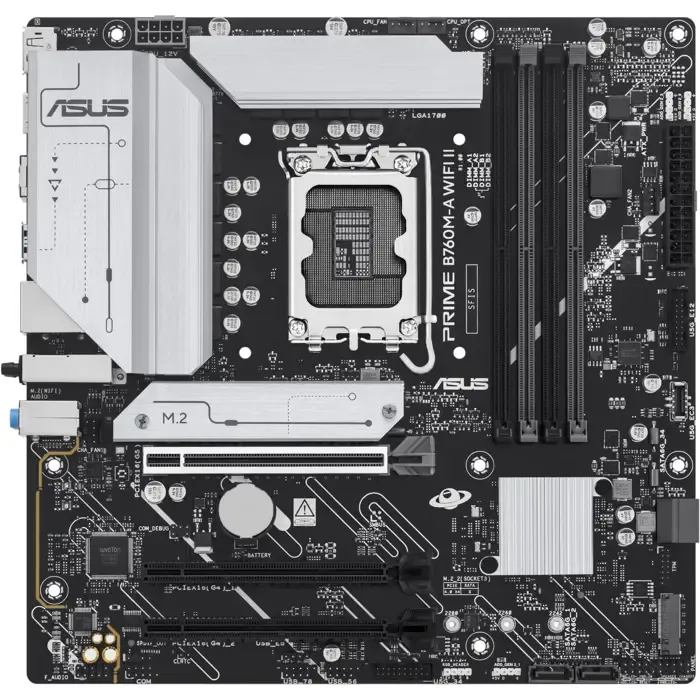

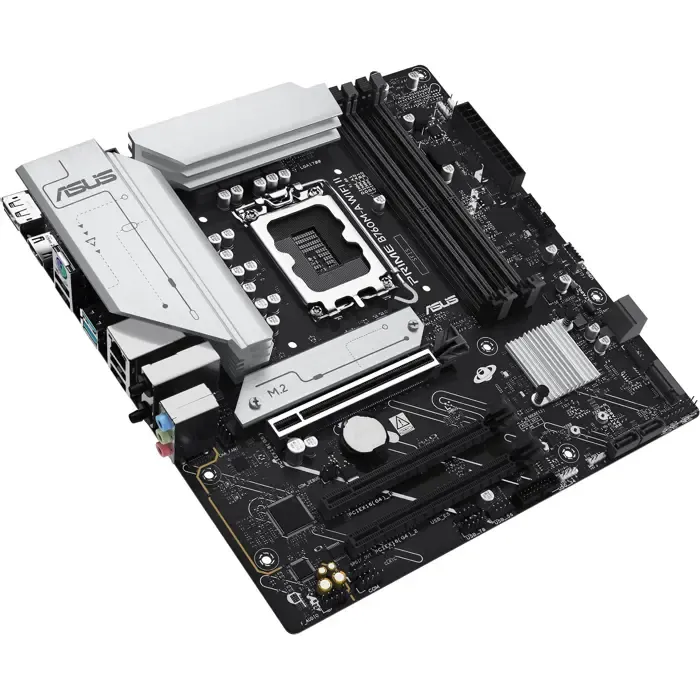

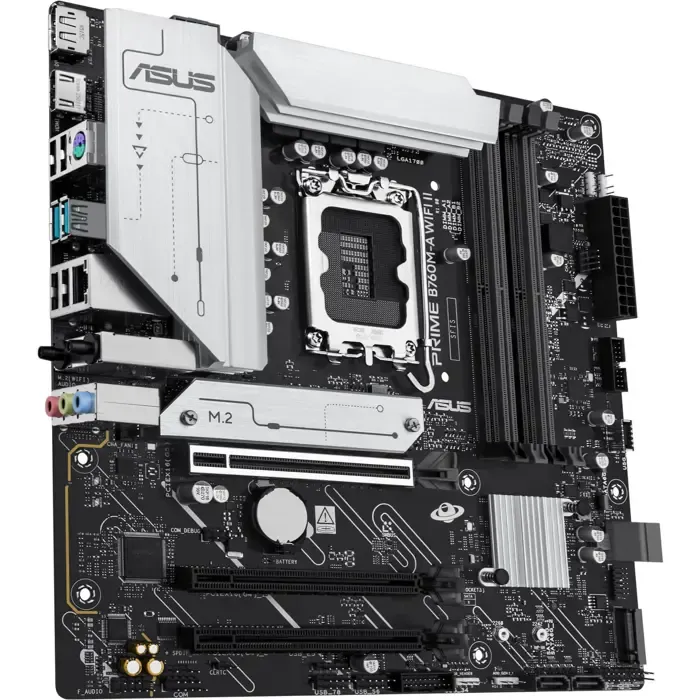

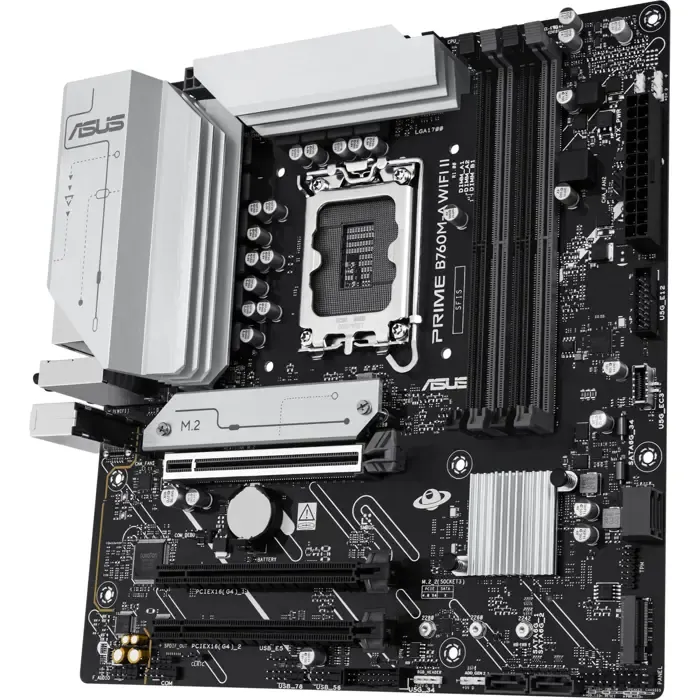

Asus PRIME B760M-A WIFI II - 1700

The ASUS PRIME B760M-A WIFI II motherboard is based on the Intel® B760 chipset and supports Intel® processors for Socket 1700 of the 14th, 13th and 12th generations. It has four DDR5 DIMM slots in dual-channel operation for up to 128 GB of RAM. The ASUS PRIME B760M-A WIFI II also features three PCIe 4.0 x16 slots. The ASUS PRIME B760M-A WIFI II also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports, WiFi 6E, Bluetooth 5.4 and a range of USB interfaces.

Mainboard type
EAN 4711636275439
Manufacturer no. 90MB1NF0-M0EAY0
Base 1700
Max. supported CPUs 1
Processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® B760
Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1)
BIOS 128Mb Flash ROM, UEFI AMI BIOS
Form factor μATX
Power supply ATX12V (24-pin + 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards DDR5 7200+ OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 480
Memory channels 2
Connections (external) Mouse/Keyboard Combo (PS/2) 1
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2
Ports (external) Note: The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) USB-A 2.0 4
Connections (external) HDMI 1
Connections (external) DisplayPort-Out 1
Connections (external) Microphone 1
Connections (external) Line-In 1
Connections (external) Line-Out 1
Connections (external) RJ-45 1
Connections (external) Bluetooth Yes
Connections (external) WLAN Yes
Connectors (internal) SATA 4
Connections (internal) M.2 2
Connections (internal) M.2 module Key M
Connectors (internal) M.2 Slot 1 PCIe Gen 4.0
Connectors (internal) M.2 Slot 2 PCIe Gen 4.0
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connections (internal) M.2 length 42 - 80 mm
Connections (internal) addressable RGB LED header 4
Connections (internal) 4-pin PWM fan 4
Ports (optional) USB 3.2 Gen 1 (5Gbps) 4
Ports (optional) USB-C 3.2 Gen 1 (5 Gbit/s 1
Ports (optional) USB 2.0 5
Connections (optional) TPM Yes
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound High Definition Audio
LAN Realtek 2.5Gb Ethernet
Wi-Fi 6E
Dimensions Width: 244mm x Height: 244mm
