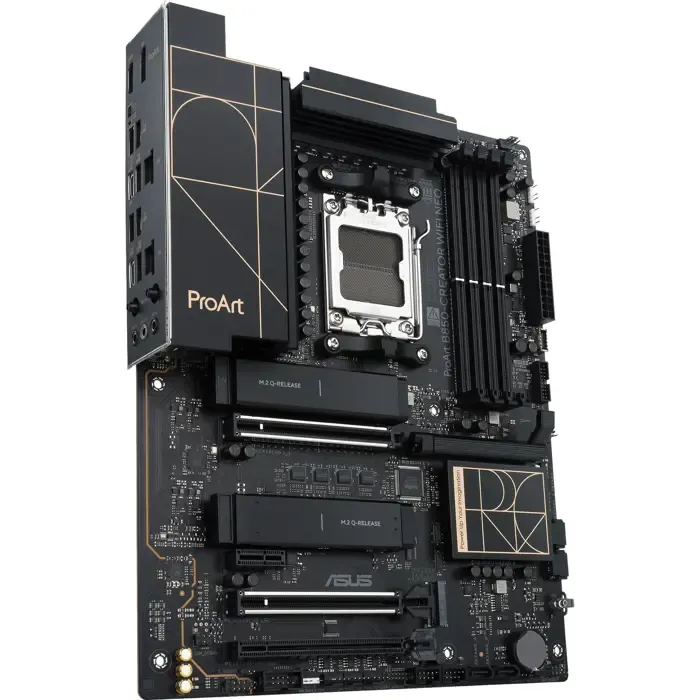

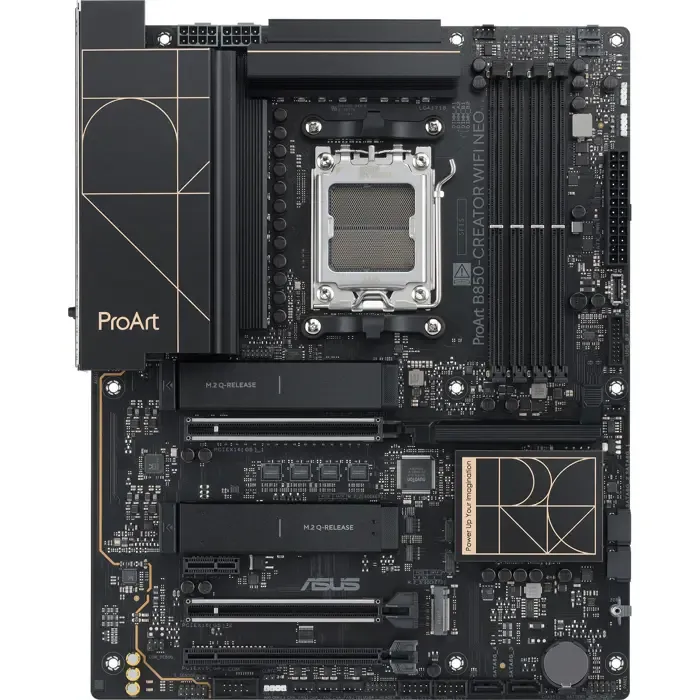

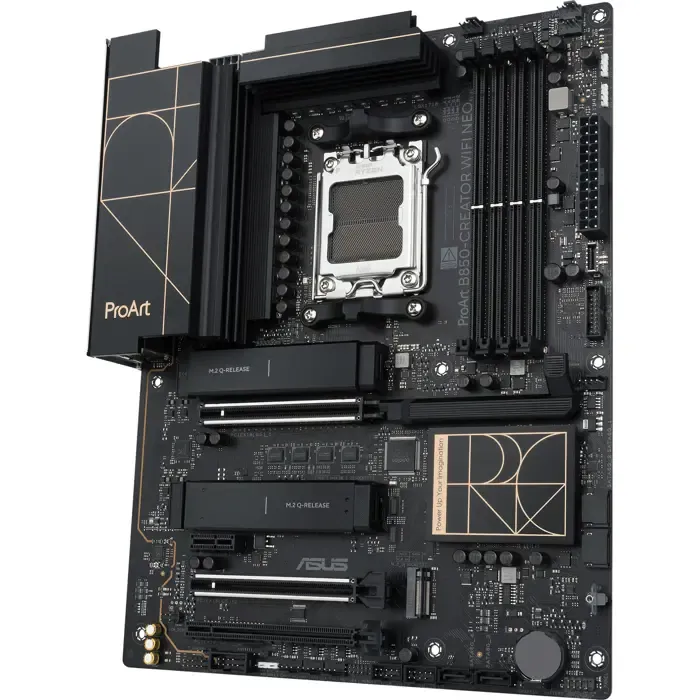

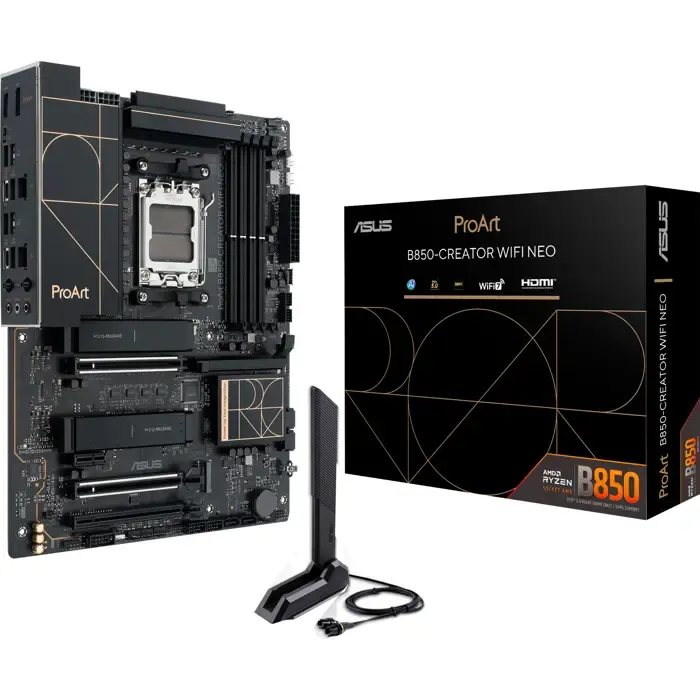

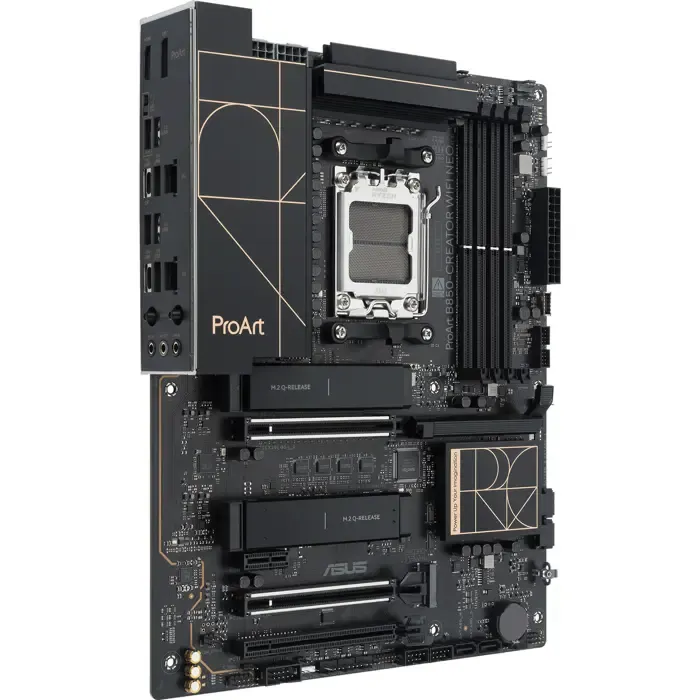

Asus PROART B850-CREATOR WIFI NEO - AM5

The ASUS PROART B850-CREATOR WIFI NEO is based on the AMD B850 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASUS PROART B850-CREATOR WIFI NEO's additional features include two PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot. The ASUS PROART B850-CREATOR WIFI NEO also has 8-channel sound, two 5 Gigabit LAN interfaces, WiFi 7, Bluetooth 5.4, four SATA3 ports, three M.2 ports and a number of USB interfaces.

Mainboard type
EAN 4711636504447
Manufacturer no. 90MB1P60-M0EAY0
Socket AM5
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset AMD B850
Slots PCIe x16 3x
BIOS 64MB (512Mb) Flash ROM, UEFI AMI BIOS
BIOS EFI BIOS Yes
Form factor ATX
Use PC
Power supply ATX12V (24-pin + 2x 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards up to DDR5-9000+(OC)
Memory channels 2
Memory Maximum memory ranks 8
Memory memory controller in CPU Yes
Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 2
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2
Ports (external) Note: The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) USB-A 2.0 4
Connections (external) HDMI 1
Connections (external) DisplayPort-Out 1
Connections (external) Microphone 1
Connections (external) Line-In 1
Connections (external) Line-Out 1
Connections (external) RJ-45 2
Connections (external) Bluetooth Yes
Connections (external) WLAN Yes
Connectors (internal) SATA 4
Connections (internal) M.2 3
Connections (internal) M.2 module Key M
Connectors (internal) M.2 Slot 1 PCIe Gen 5.0
Connectors (internal) M.2 Slot 2 PCIe Gen 5.0
Connectors (internal) M.2 Slot 3 PCIe Gen 4.0
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connectors (internal) M.2 interface PCIe
Connections (internal) M.2 length 42 - 80 mm
Ports (internal) USB-C 3.2 Gen 2 (10 Gbit/s) 1
Ports (internal) USB-A 3.2 Gen 1 (5 Gbit/s) 1
Ports (internal) USB 2.0 2
Connections (internal) 4-pin PWM fan 7
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
Ports (optional) USB 2.0 4
Connections (optional) Serial 1
Ports (optional) Thunderbolt 1
Connections (optional) TPM Yes
SATA controller AMD B850
Directly usable RAID levels 0, 1, 10, 5
USB controller AMD B850
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek ALC1220P 7.1
LAN 2x Realtek 5Gb Ethernet
Wi-Fi 7 Realtek RTL8922AE + Bluetooth 5.4
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244mm x Height: 305mm
Warnings and safety instructions Warnings: Attention: Product contains a button cell or coin battery.
