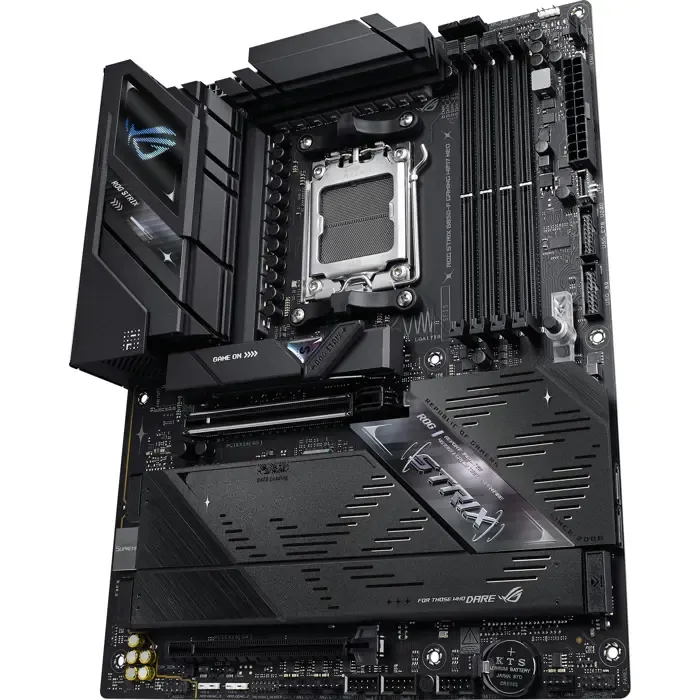

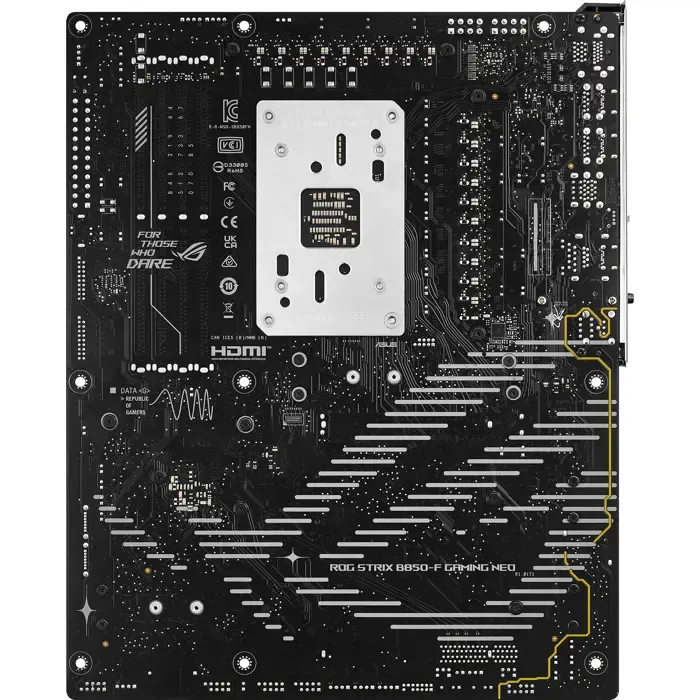

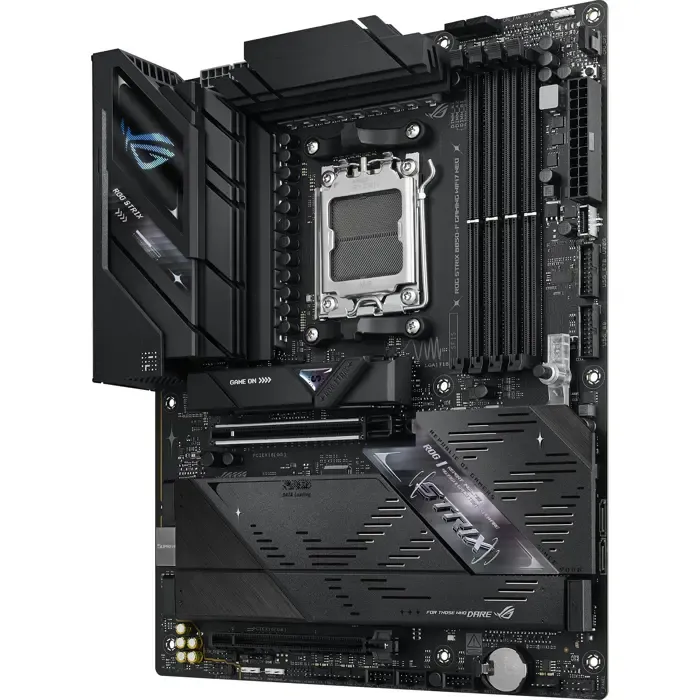

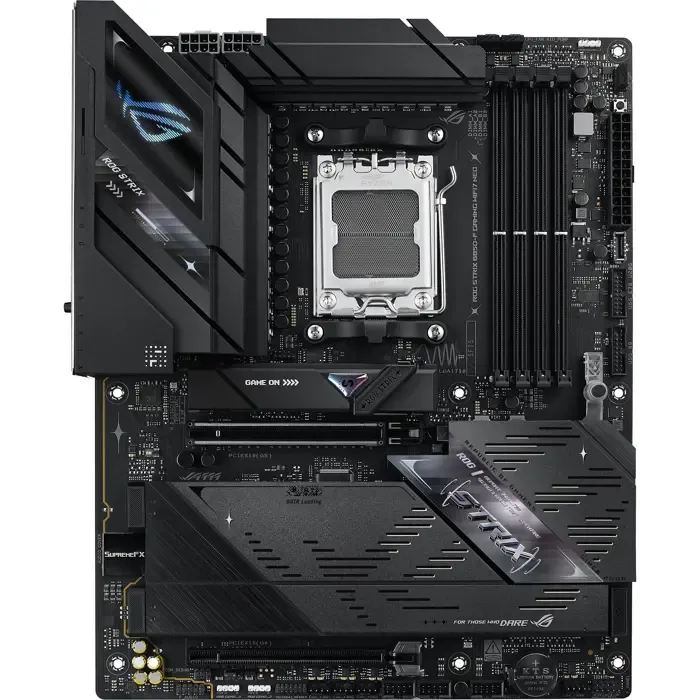

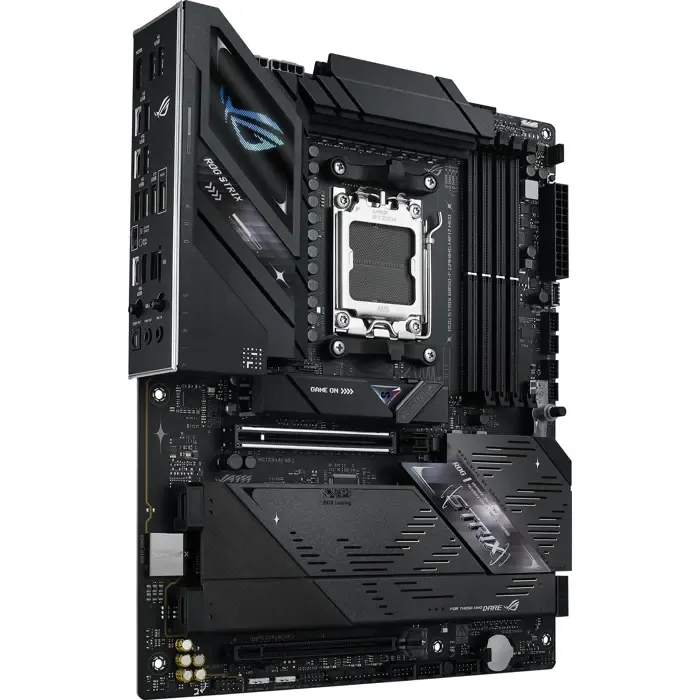

Asus ROG STRIX B850-F GAMING WIFI7 NEO - AM5

The ASUS ROG STRIX B850-F GAMING WIFI7 NEO is based on the AMD B850 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASUS ROG STRIX B850-F GAMING WIFI7 NEO also features a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). The ASUS ROG STRIX B850-F GAMING WIFI7 NEO also has 8-channel sound, a 5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, two SATA3 ports, four M.2 ports and a range of USB interfaces.

Mainboard type
EAN 4711636434904
Manufacturer no. 90MB1NX0-M0EAY0
Socket AM5
Max. supported CPUs 1
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset AMD B850
Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4)
BIOS 256Mb Flash ROM, UEFI AMI BIOS
Form factor ATX
Use PC
Power supply ATX12V (24-pin + 2x 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards up to DDR5-8000+(OC)
Memory channels 2
Memory Maximum memory ranks 8
Memory memory controller in CPU Yes
Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1
Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2
Ports (external) USB-C 3.2 Gen 1 (5 Gbit/s) 4
Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 1
Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) USB-A 2.0 4
Connections (external) HDMI 1
Connections (external) DisplayPort-Out 1
Connections (external) Microphone 1
Connections (external) Line-Out 1
Connections (external) S/PDIF-Out (optical) 1
Connections (external) Bluetooth Yes
Connections (external) WLAN Yes
Connectors (internal) SATA 2
Connections (internal) M.2 4
Connections (internal) M.2 module Key M
Connectors (internal) M.2 Slot 1 PCIe Gen 5.0
Connectors (internal) M.2 Slot 2 PCIe Gen 4.0
Connectors (internal) M.2 Slot 3 PCIe Gen 4.0
Connectors (internal) M.2 Slot 4 PCIe Gen 4.0
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connectors (internal) M.2 interface PCIe
Connections (internal) M.2 length 42 - 110 mm
Connections (internal) addressable RGB LED header 3
Connections (internal) 4-pin PWM fan 7
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
Ports (optional) USB-C 3.2 Gen 2 (10 Gbit/s 1
Ports (optional) USB 2.0 4
Ports (optional) Thunderbolt 1
SATA controller AMD B850
USB controller AMD B850
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound ROG SupremeFX 7.1 surround sound
LAN Intel® 5Gb Ethernet
Wi-Fi 7, Bluetooth 5.4
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244mm x Height: 305mm
Warnings and safety instructions Warnings: Attention: Product contains a button cell or coin battery.
