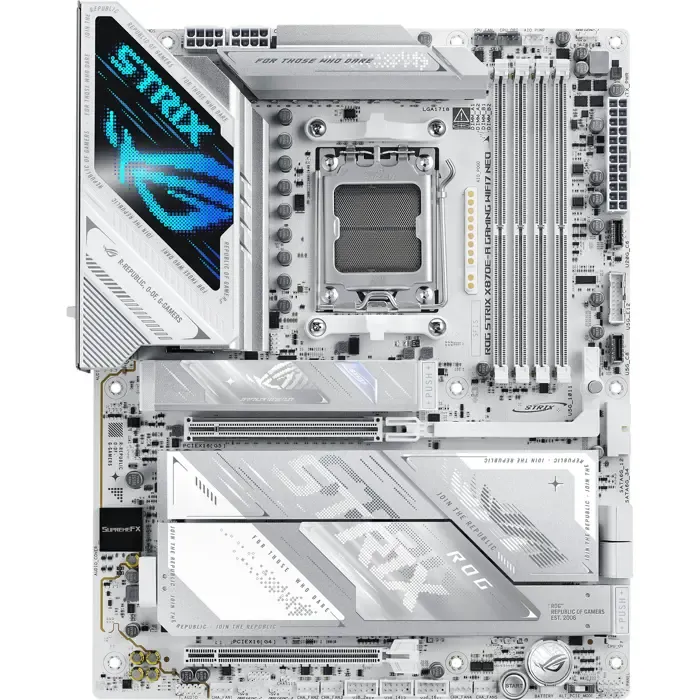

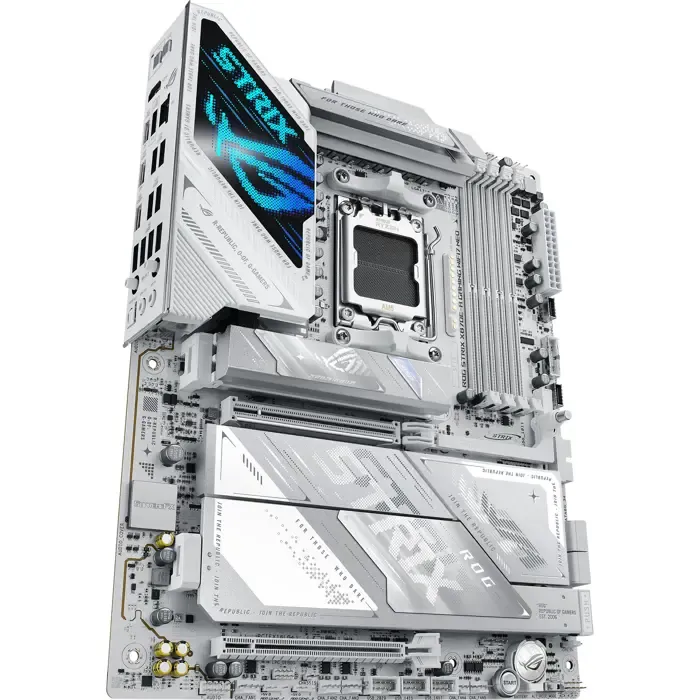

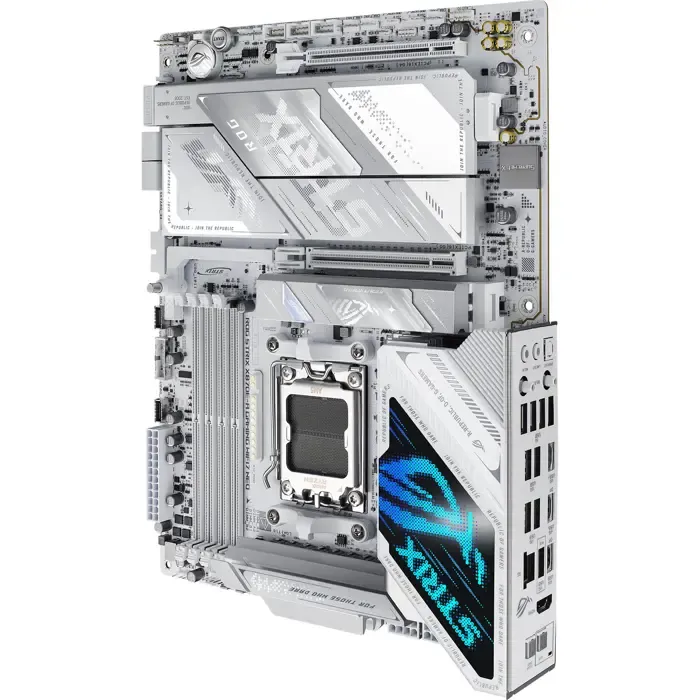

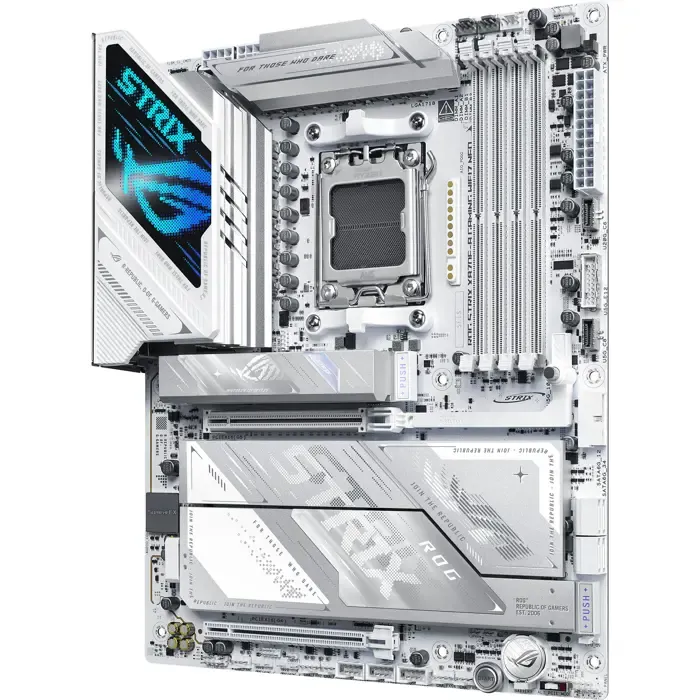

Asus ROG STRIX X870E-A GAMING WIFI7 NEO (white) - AM5

The ASUS ROG STRIX X870E-A GAMING WIFI7 NEO is based on the AMD X870E chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASUS ROG STRIX X870E-E GAMING WIFI also features a PCIe 5.0 x16 slot. The ASUS ROG STRIX

Mainboard type
Color white
EAN 4711636491617
Manufacturer no. 90MB1P30-M0EAY0
Socket AM5
Max. supported CPUs 1
Operating system support Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset AMD X870E
Slots PCIe x16 1x (of which: 1x PCIe x16)
BIOS 64MB (512Mb) Flash ROM, UEFI AMI BIOS
BIOS EFI BIOS Yes
Form factor ATX
Power supply ATX12V (24-pin + 2x 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards DDR5 5200 / 4800 / 4400
Memory channels 2
Memory Maximum memory ranks 8
Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 5
Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 4
Connections (external) USB4 2
Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) HDMI 1
Connections (external) Line-In 1
Connections (external) Line-Out 1
Connections (external) S/PDIF-Out (optical) 1
Connections (external) RJ-45 1
Connections (external) Bluetooth Yes
Connections (external) WLAN Yes
Connectors (internal) SATA 4
Connections (internal) M.2 4
Connections (internal) M.2 module Key M
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connectors (internal) M.2 interface PCIe
Connections (internal) M.2 length 80 - 80 mm
Connections (internal) addressable RGB LED header 3
Ports (internal) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1
Connections (internal) 4-pin PWM fan 6
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
Ports (optional) USB 2.0 3
RGB Standard AURA Sync
SATA controller AMD X870E
Directly usable RAID levels 0, 1, 10, 5
USB controller AMD X870E
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
LAN Realtek 5Gb Ethernet
Wi-Fi 7 + Bluetooth 5.4
Features 2x USB4 DisplayPort Video outputs | Support for DisplayPort 1.4 and HDR.
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244mm x Height: 305mm
