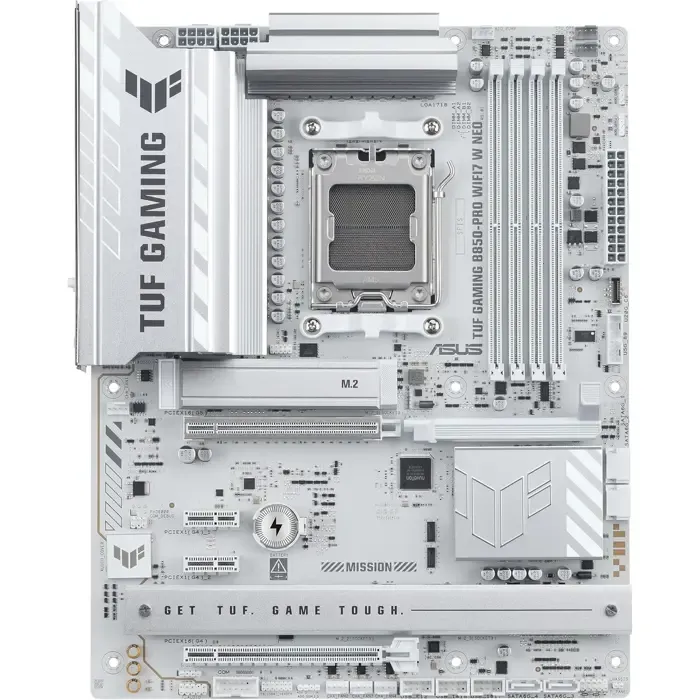

ASUS TUF GAMING B850-PRO WIFI7 W NEO (white) - AM5

ASUS TUF GAMING B850-PRO WIFI7 W NEO: high-performance white ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 Series desktop processors using the AM5 socket. The AMD B850 chipset, robust 14+2+1 power design, DDR5 memory support, PCIe 5.0 connectivity and advanced cooling make it suitable for powerful gaming PCs, content creation systems and high-performance workstations.

The 14+2+1 power stage design uses premium 80A DrMOS stages to provide stable and efficient power delivery for demanding Ryzen processors. Enlarged VRM heatsinks, an eight-layer server-grade PCB and dedicated power and ground layers help maintain signal integrity and system stability during intensive workloads and extended gaming sessions.

Four DDR5 DIMM slots support up to 256 GB of system memory in dual-channel mode. Depending on the installed Ryzen processor, the motherboard supports memory speeds of up to 9000+ MT/s through overclocking. AMD EXPO and ASUS AEMP profiles make it easier to optimize compatible high-performance memory modules. Both ECC and non-ECC unbuffered DDR5 memory are supported, depending on CPU capabilities.

The primary graphics slot supports PCI Express 5.0 with compatible Ryzen 9000 and 7000 Series processors, providing high bandwidth for current and next-generation graphics cards. ASUS SafeSlot reinforcement improves mechanical strength, while PCIe Slot Q-Release simplifies graphics card removal.

Three M.2 slots provide extensive high-speed NVMe storage options. The primary M.2 slot supports PCI Express 5.0 x4 with compatible processors, while the additional M.2 connectors support PCI Express 4.0 x4. Four SATA 6 Gb/s ports are also available for SATA SSDs and hard drives. M.2 Q-Release and Q-Latch mechanisms simplify SSD installation without requiring small screws.

Integrated 2.5 Gigabit Ethernet provides fast wired networking, while Realtek Wi-Fi 7 offers 2x2 wireless connectivity across the 2.4 GHz, 5 GHz and 6 GHz frequency bands. Bluetooth 5.4 with LE Audio support is also integrated for wireless peripherals, headsets and other compatible devices.

The Realtek ALC1220P audio codec provides high-quality multi-channel sound and is combined with dedicated PCB audio layers, premium capacitors, audio shielding and DTS Audio Processing. This makes the board suitable for gaming headsets, desktop speakers and home entertainment setups without requiring a separate sound card.

The rear I/O provides extensive USB connectivity with four USB 10Gbps ports, including two USB-C and two USB-A connectors, four USB 5Gbps Type-A ports and two USB 2.0 ports. A front-panel USB-C header supports transfer speeds of up to 20 Gbps, while additional internal headers provide connectivity for front USB ports, cooling controllers and other accessories.

DisplayPort and HDMI outputs allow the use of integrated graphics available on compatible Ryzen processors. The board also includes a Thunderbolt USB4 header for compatible expansion solutions, BIOS FlashBack, Clear CMOS, Q-LED diagnostics and ASUS Q-Antenna for easier system installation and maintenance.

ASUS AI Cooling II automatically optimizes fan operation based on system temperatures and workloads. AI Cache Boost can optimize CPU cache and memory pathways for supported Ryzen 9000 Series processors, while the integrated asynchronous clock generator provides additional flexibility for advanced CPU tuning.

Three Addressable Gen 2 RGB headers and ASUS Aura Sync support allow compatible lighting components to be synchronized across the system. The white and silver TUF GAMING design makes the motherboard particularly suitable for light-colored PC builds with matching cases, graphics cards and cooling components.


Device type Motherboard
EAN 4711636435994
Manufacturer part number 90MB1NW0-M0EAY0
Model ASUS TUF GAMING B850-PRO WIFI7 W NEO
Form factor ATX
Color White / Silver
CPU socket AM5
Chipset AMD B850
Supported processor families AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors
Power design 14+2+1 power stages
Power stage rating 80 A
PCB design 8-layer server-grade PCB
Memory type DDR5
Memory slots 4
Maximum memory capacity 256 GB
Memory architecture Dual channel
Maximum memory speed Up to 9000+ MT/s OC, depending on processor and memory configuration
AMD EXPO support Yes
ASUS AEMP support Yes
ECC memory support ECC and non-ECC unbuffered DIMM, depending on processor support
Primary PCIe slot Up to PCI Express 5.0 x16
PCIe SafeSlot Yes
PCIe Slot Q-Release Yes
Additional full-length PCIe slot 1x PCI Express 4.0 x16, maximum x4 mode
Additional PCIe slots 2x PCI Express 4.0 x1
M.2 slots 3
M.2_1 Up to PCI Express 5.0 x4, depending on processor
M.2_1 supported size 2280
M.2_2 PCI Express 4.0 x4
M.2_2 supported sizes 2242, 2260, 2280 and 22110
M.2_3 PCI Express 4.0 x4
M.2_3 supported size 2280
M.2 Q-Release Yes
M.2 Q-Latch Yes
M.2 heatsinks Yes
SATA ports 4x SATA 6 Gb/s
NVMe RAID support Yes
Ethernet Realtek 2.5Gb Ethernet
Maximum wired network speed 2.5 Gbps
Wireless networking Realtek RTL8922AE Wi-Fi 7
Wi-Fi standard 2x2 Wi-Fi 7, IEEE 802.11be
Wi-Fi bands 2.4 GHz, 5 GHz and 6 GHz
Maximum Wi-Fi 7 channel width 160 MHz
Bluetooth 5.4
Bluetooth LE Audio support Yes
Wi-Fi antenna ASUS WiFi Q-Antenna
Audio codec Realtek ALC1220P
DTS Audio Processing Yes
Audio shielding Yes
Dedicated audio PCB layers Yes
Premium audio capacitors Yes
Rear USB 10Gbps 4 ports, 2x USB-A and 2x USB-C
Rear USB 5Gbps 4x USB-A
Rear USB 2.0 2x USB-A
Front USB-C 1x USB 20Gbps header
Internal USB 5Gbps header 1
Internal USB 2.0 headers 3
Display outputs 1x HDMI and 1x DisplayPort
Thunderbolt / USB4 expansion header 1
BIOS FlashBack button Yes
Clear CMOS button Yes
Q-LED diagnostics Yes
CPU fan header Yes
CPU optional fan header Yes
AIO pump header Yes
Chassis fan headers 4
Addressable RGB headers 3x Addressable Gen 2
ASUS Aura Sync Yes
AI Cooling II Yes
AI Cache Boost Yes, with supported processors
AI Advisor support Yes
Asynchronous Clock Yes
BIOS capacity 64 MB
Operating system support Windows 11 64-bit
Form factor dimensions 30.5 × 24.4 cm
Gross weight 1.60 kg
