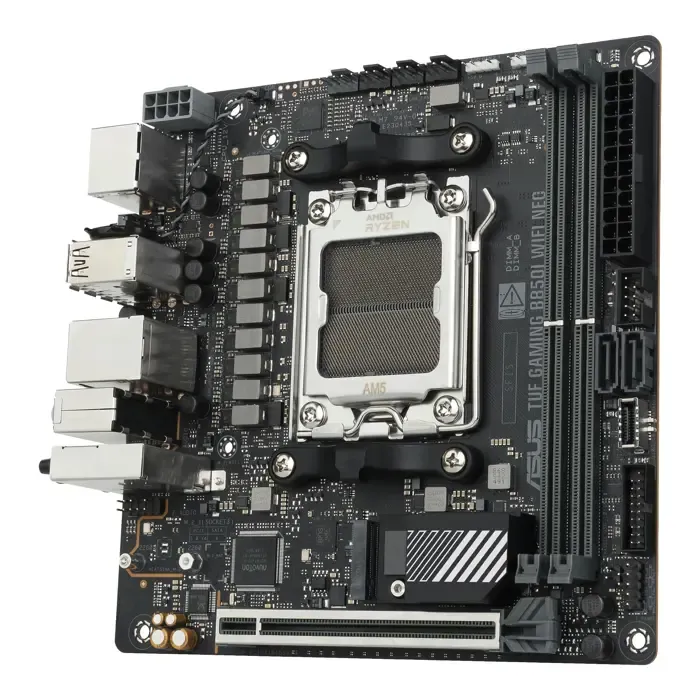

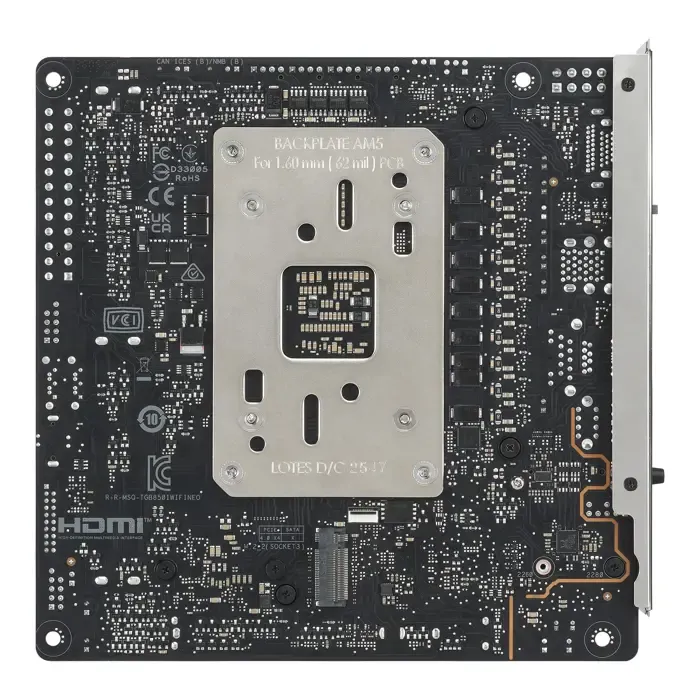

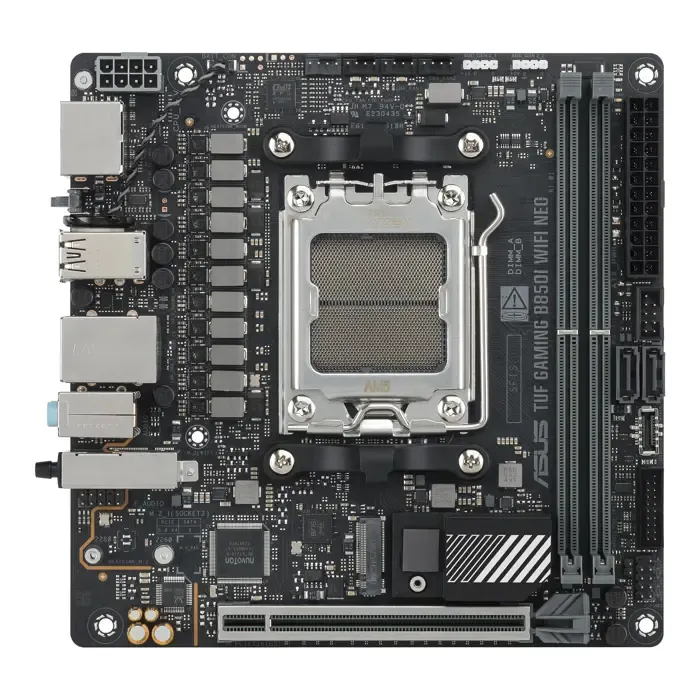

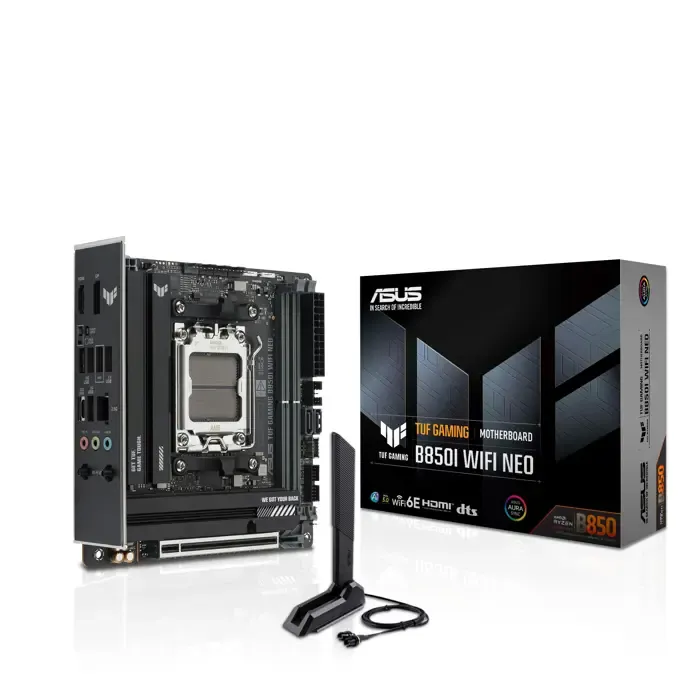

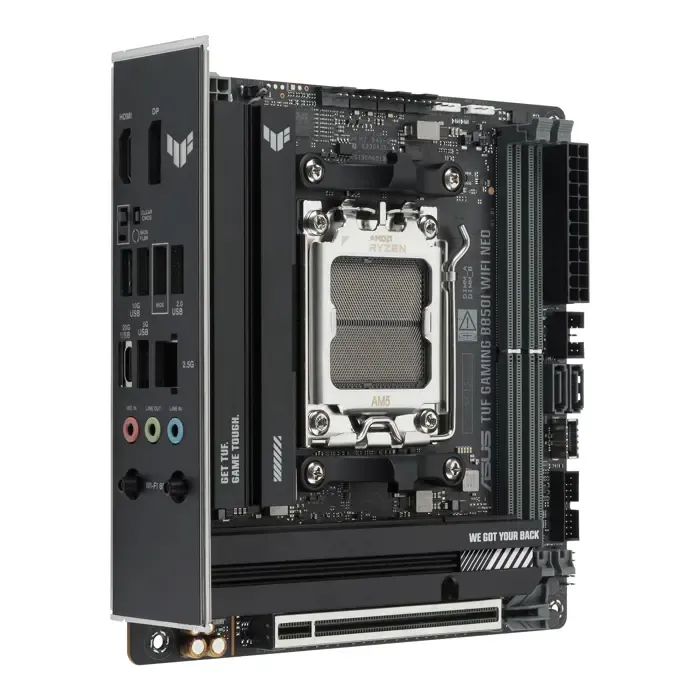

ASUS TUF GAMING B850I WIFI NEO - AM5

ASUS TUF GAMING B850I WIFI NEO is based on the AMD B850 chipset and supports AMD Ryzen 9000, 8000 and 7000 series processors for the AM5 socket. The board in the compact Mini-ITX format has two DDR5 memory slots with a total capacity of up to 128 GB. It also offers a PCIe x16 slot, two M.2 ports, 2.5 Gb/s LAN and Wi-Fi 6E connectivity.

Type motherboard
EAN 4711636580915
Manufacturer No. 90MB1PI0-M0EAY0
TUF Gaming Series
Socket AM5
Max. supported processors 1
Support Windows 11 operating system
Supported processors AMD Ryzen 9000 series, AMD Ryzen 8000 series, AMD Ryzen 7000 series
AMD B850 chipset
PCIe x16 slots 1
PCIe slot standard PCIe 5.0 x16 with Ryzen processors 9000 and 7000, PCIe 4.0 x16 with Ryzen 8000 processors
BIOS 32 MB Flash ROM, UEFI AMI BIOS
BIOS EFI BIOS Yes
Mini-ITX form factor
Power supply ATX12V 24-pin + 8-pin
Power section 8+2+1, 80 A
Memory up to 128 GB
Number of memory slots 2x DDR5
Dual Channel memory architecture
ECC and Non-ECC Unbuffered memory support
AMD EXPO support Yes
ASUS AEMP support Yes
Maximum memory speed with Ryzen 9000 processors up to 8200+ MT/s after overclock
Maximum memory speed with Ryzen 8000 processors to 9600+ MT/s after overclock
Maximum memory speed with Ryzen 7000 processors to 8000+ MT/s after overclock
External ports USB-C 20 Gbit/s 1
External ports USB-A 10 Gbit/s 2
Ports external USB-A 5 Gbit/s 1
External ports USB-A 2.0 2
External connections HDMI 1
External connections DisplayPort 1
Maximum resolution DisplayPort 7680 x 4320 at 30 Hz
Maximum resolution HDMI 3840 x 2160 at 60 Hz
External connections RJ-45 1
External connections audio connectors 3
External connections Bluetooth Yes, with Bluetooth LE Audio support
External connections WLAN Yes
SATA internal connectors 2
M.2 internal connections 2
M.2 Key M module
Supported M.2 drive lengths 60 and 80 mm
Interface of the first M.2 PCIe 5.0 x4 connector with Ryzen 9000 and 7000 processors, PCIe 4.0 x4 with Ryzen 8000 processors
Interface of the second M.2 PCIe 4.0 x4 connector
Internal connections addressable RGB LED connector 2
Internal ports USB-C 10 Gbit/s 1
Optional ports USB 5 Gbit/s 2
Ports optional USB 2.0 2
Fan connectors 4-pin 4
RGB synchronization standard ASUS Aura Sync
SATA AMD B850 controller
Supported RAID levels 0, 1, 5, 10
AMD B850 USB controller
Built-in graphics The motherboard image connectors can only be used with a processor that has an integrated system graphic.
LAN Realtek 2.5 Gb Ethernet
WLAN Wi-Fi 6E 2x2
Supported WLAN bands 2.4 GHz, 5 GHz and 6 GHz
Sound Realtek 7.1 Surround Sound High Definition Audio
Maximum sound quality 24 bit / 192 kHz
Buttons on the rear panel BIOS FlashBack, Clear CMOS
Further information The actual standard of the PCIe and M.2 slots depends on the processor used. Availability of the 6 GHz Wi-Fi band depends on local regulations and requires Windows 11 or later.
Dimensions Width: 170 mm × Height: 170 mm
