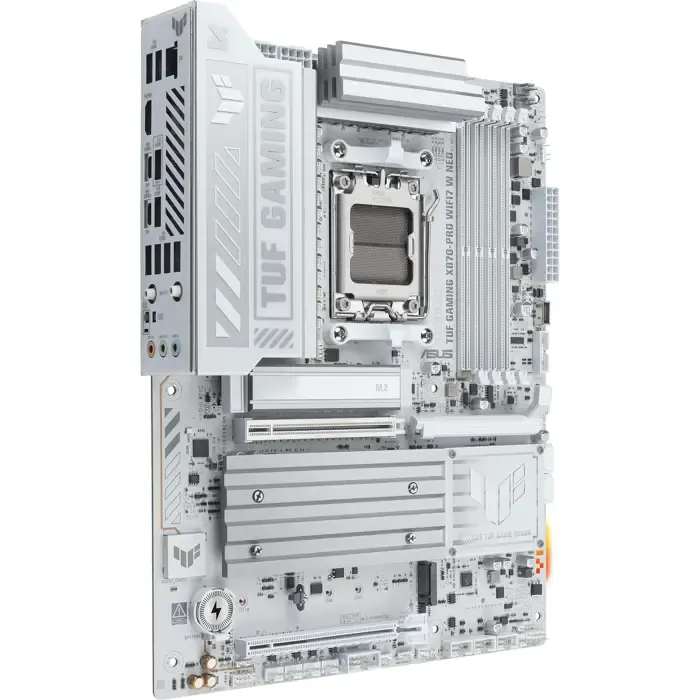

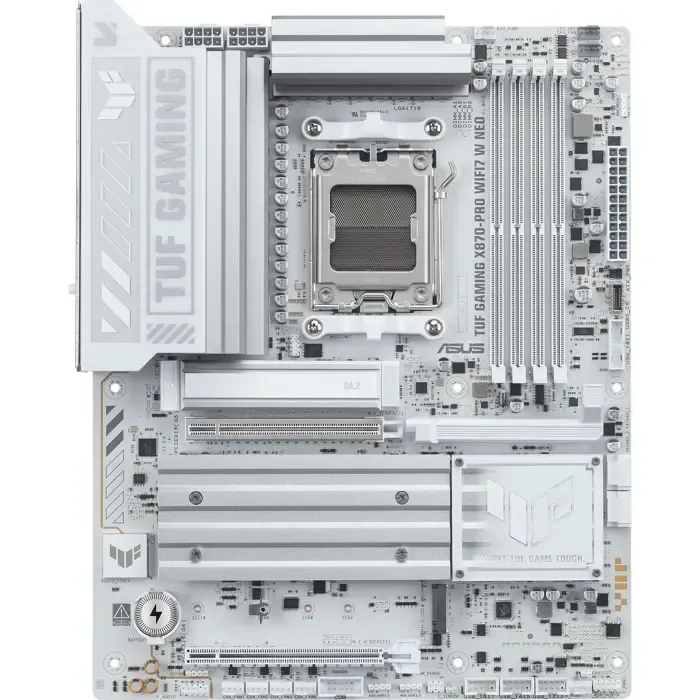

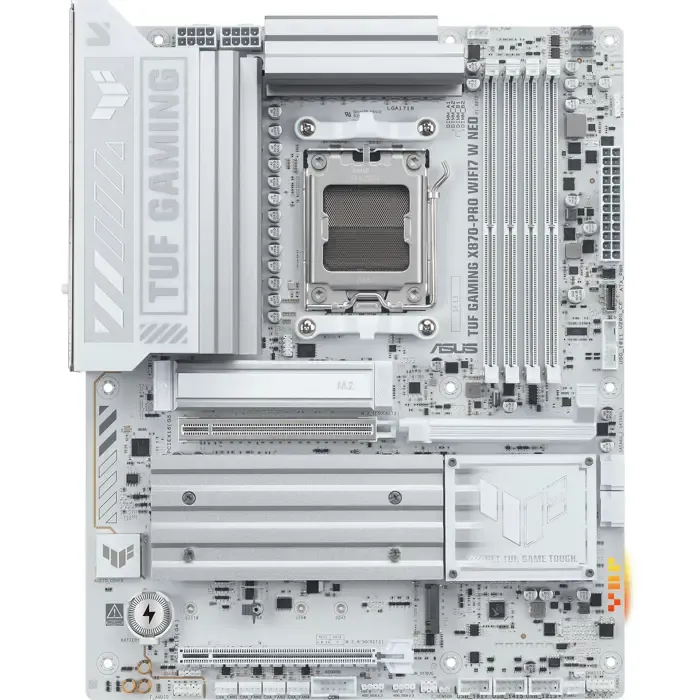

Asus TUF GAMING X870-PRO WIFI7 W NEO (white) - AM5

The ASUS TUF GAMING X870-PRO WIFI7 W NEO is based on the AMD X870E chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASUS TUF GAMING X870-PRO WIFI7 W NEO's additional features include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). The ASUS TUF GAMING

Mainboard type
Color white
EAN 4711636425247
Manufacturer no. 90MB1NY0-M0EAY0
Socket AM5
Max. supported CPUs 1
Operating system support Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Chipset AMD X870
Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4)
BIOS 512Mb Flash ROM, UEFI AMI BIOS
BIOS EFI BIOS Yes
Form factor ATX
Power supply ATX12V (24-pin + 2x 8-pin)
Memory maximum 256 GB
Memory number of sockets 4x DDR5
Memory supported standards DDR5-9600(OC) / 9000 / 8600 / 8200 / 8000 MT/s
Memory channels 2
Memory Maximum memory ranks 8
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 3
Ports (external) USB-A 3.2 Gen 1 (5 Gbit/s) 4
Connections (external) USB4 2
Ports (external) Note: The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1.
Connections (external) USB-A 2.0 1
Connections (external) HDMI 1
Connections (external) Microphone 1
Connections (external) Line-In 1
Connections (external) Line-Out 1
Connections (external) RJ-45 1
Connections (external) Bluetooth Yes
Connections (external) WLAN Yes
Connectors (internal) SATA 2
Connections (internal) M.2 4
Connections (internal) M.2 module Key M
Connectors (internal) M.2 Slot 1 PCIe Gen 5.0
Connectors (internal) M.2 Slot 2 PCIe Gen 5.0
Connectors (internal) M.2 Slot 3 PCIe Gen 4.0
Connectors (internal) M.2 Slot 4 PCIe Gen 4.0
Connections (internal) Note: The actual usable speed of your M.2 SSDs depends on the combination of CPU, mainboard slot and chipset.
Connectors (internal) M.2 interface PCIe
Connections (internal) M.2 length 42 - 110 mm
Connections (internal) addressable RGB LED header 3
Ports (internal) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1
Connections (internal) 4-pin PWM fan 8
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 1
Ports (optional) USB-C 3.2 Gen 2x2 (20 Gbit/s 1
Ports (optional) USB 2.0 3
Connections (optional) Serial 1
Connections (optional) TPM Yes
SATA controller AMD X870
Directly usable RAID levels 0, 1, 10, 5
USB controller AMD X870
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek ALC1220P
LAN 5GbE LAN
Wi-Fi 7 (Realtek RTL8922AE) + Bluetooth 5.4
Features 2x USB4 DisplayPort Video outputs | Support for DisplayPort 1.4 and HDR.
Further information In order to support the latest processor cores, a BIOS update may be required.

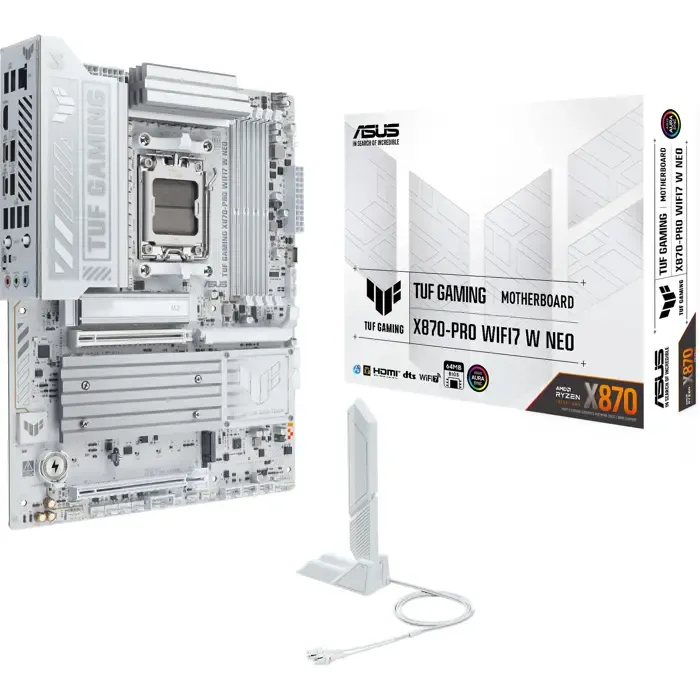

Accessories included 2 x SATA 6Gb/s cable, 1 x ASUS WiFi Q antenna, 2 x M.2 rubber packs, 1 x screw pack for M.2 SSD, 1 x quick start guide
Dimensions Width: 305mm x Height: 244mm
