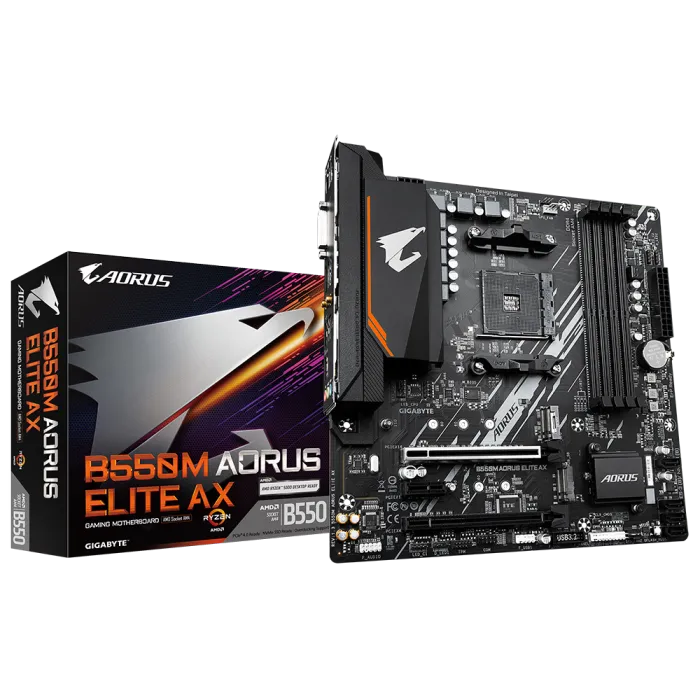

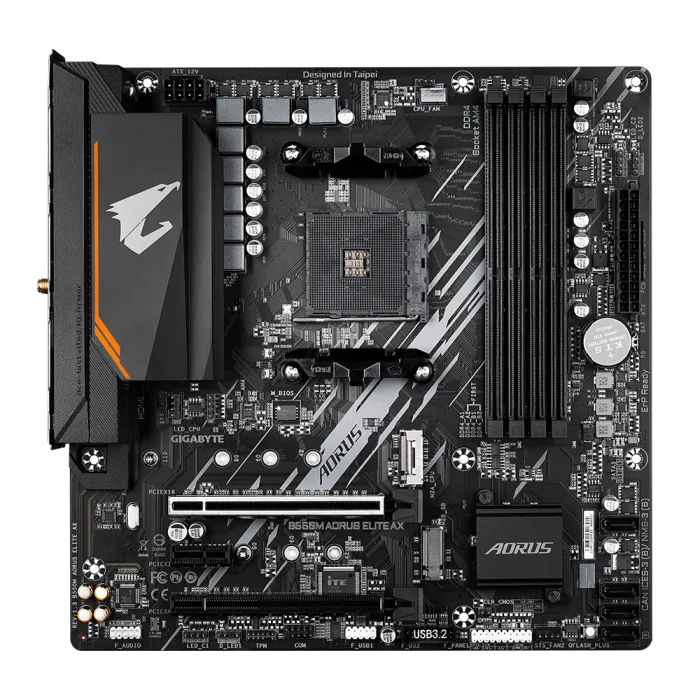

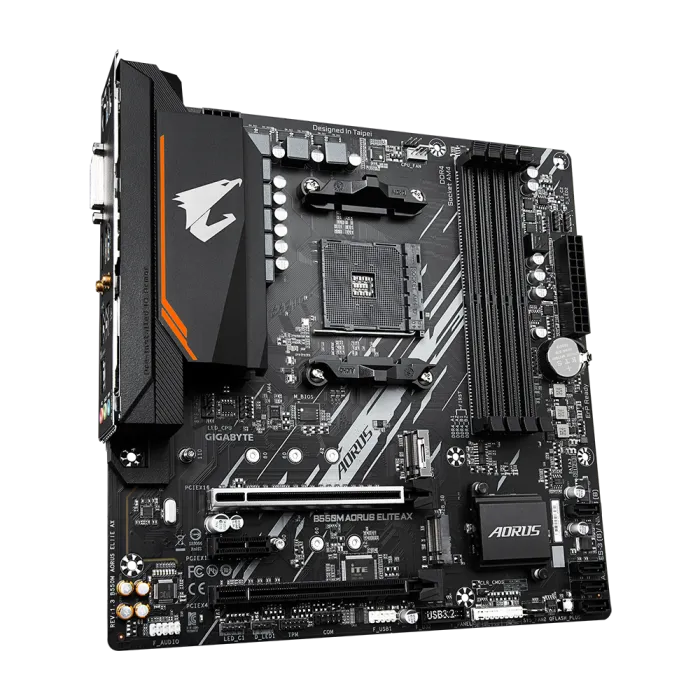

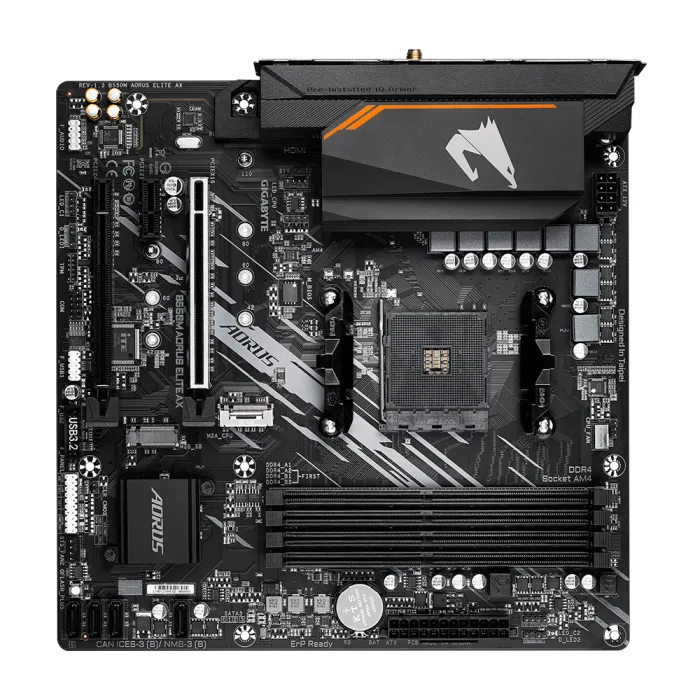

GIGABYTE B550M AORUS ELITE AX, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX

<div data-content-type="row" data-appearance="contained" data-element="main"><div data-enable-parallax="0" data-parallax-speed="0.5" data-background-images="{}" data-background-type="image" data-video-loop="true" data-video-play-only-visible="true" data-video-lazy-load="true" data-video-fallback-src="" data-background-lazy-load="" data-element="inner" data-pb-style="MGF8HXQ"><div data-content-type="text" data-appearance="default" data-element="main"><p><strong>PODNOŽJE</strong>: AMD AM4
<strong>ZA PROCESORJE</strong>: AMD RYZEN 5000/4000/3000
<strong>FORMAT</strong>: mATX format 24.4 cm x 24.4 cm
<strong>VEZNI ČIP</strong>: AMD B550
<strong>POMNILNIK</strong>:
4 x DDR4 DIMM ECC/non-ECC do 4733&nbsp;(O.C.)&nbsp;MHz (odvisno od procesorja)&nbsp;do skupno 128GB kapacitete, dual channel in&nbsp;Extreme Memory Profile (XMP)&nbsp;podpora
<strong>GRAFIKA</strong>: DA - preko APU
<strong>RAID</strong>: DA (0,1,10)
<strong>RAZŠIRITVENE REŽE</strong>:
1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
<strong>MREŽNA KARTICA</strong>:&nbsp;Realtek LAN chip (10/100/1000Mbit) ;&nbsp;Realtek®&nbsp;Wi-Fi 6E RTL8852CE&nbsp;WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz +&nbsp;BLUETOOTH 5.3
<strong>ZVOČNA KARTICA</strong>: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
<strong>NOTRANJI PRIKLJUČKI</strong>:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

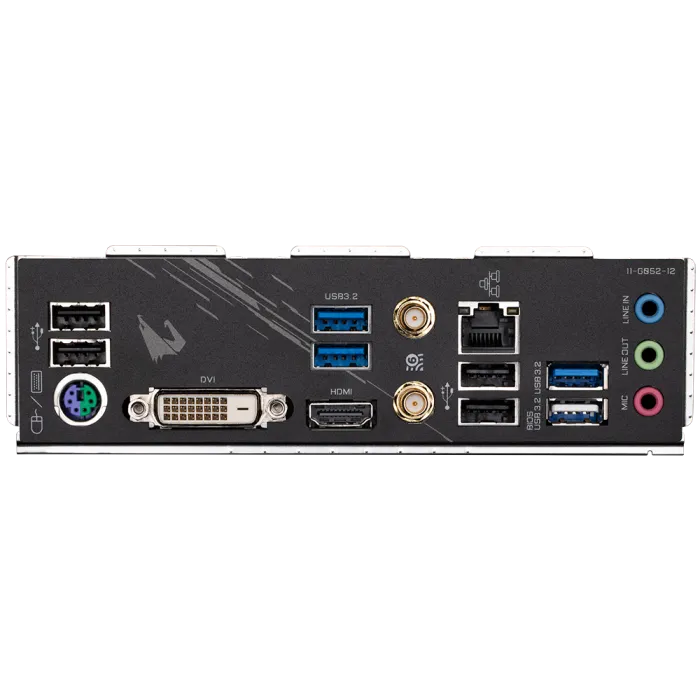

<strong>ZUNANJI PRIKLJUČKI</strong>:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
<strong>DODATNO</strong>:</p> <p>iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software</p></div></div></div> Official manufacturer website: https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13
