GigaByte GiBy A520M DS3H WF6E

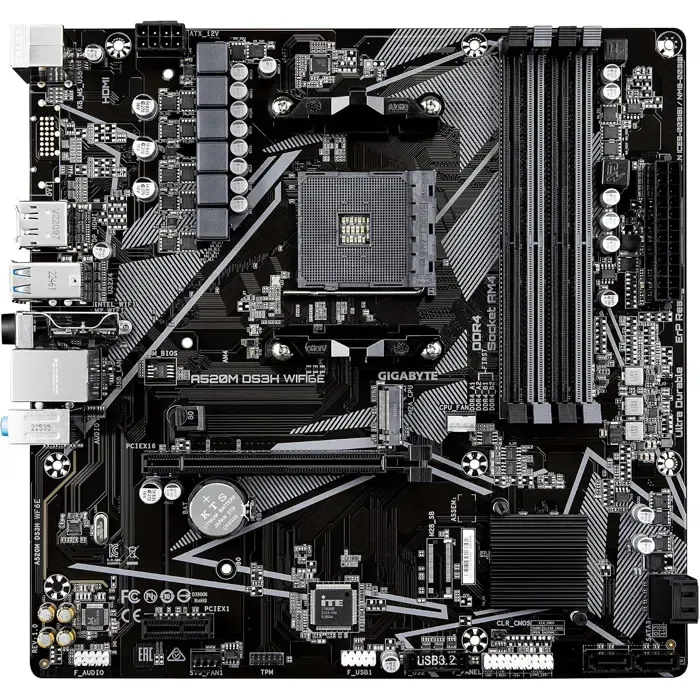

GIGABYTE A520M DS3H WIFI6E: a Micro ATX motherboard designed to build an inexpensive and functional computer based on AMD Ryzen processors with an AM4 socket. The AMD A520 chipset supports Ryzen 3000, 4000 G, 5000 and 5000 G series processors, making the board suitable for both home and office computers, as well as universal multimedia and gaming sets.
Four DDR4 slots enable the installation of up to 128 GB of RAM in a dual-channel configuration. Modules clocked at up to 4733 MHz after overclocking, XMP profiles and ECC Unbuffered memory are supported, with the available parameters depending on the processor used and module configuration.
The M.2 Socket 3 connector supports NVMe PCIe 3.0 x4 SSDs and M.2 SATA media in the 2280 format. Four SATA 6 Gb/s ports allow you to connect additional SSDs and HDD and create RAID 0, RAID 1 or RAID 10 arrays.
The built-in MediaTek module provides Wi-Fi 6E connectivity in the 2.4 GHz, 5 GHz and 6 GHz bands, support for channels up to 160 MHz wide and Bluetooth 5.3. The EZ-Plug WIFI system simplifies the connection of the included antenna. Wired network communication is provided by a Realtek Gigabit Ethernet controller.
The main PCI Express 3.0 x16 connector with Ultra Durable design is intended for mounting a graphics card. An additional PCI Express 3.0 x1 slot allows you to install an expansion card, such as a controller, sound card or additional network card.
When you use an AMD Ryzen processor with an integrated Radeon chip, you can use HDMI 2.1 and DisplayPort 1.4 outputs. DisplayPort supports a resolution of up to 5120 x 2880 at 60 Hz, while HDMI supports a resolution of up to 4096 x 2160 at 60 Hz. The availability of image features depends on the processor used.
The Smart Fan 6 system uses temperature sensors, hybrid fan headers and the Fan Stop function to help automatically adjust cooling to the computer load. The design also includes high-quality audio capacitors, sound section separation, digital power supply and sulfur-resistant resistors.


Device type Motherboard
EAN 4719331880743
Manufacturer number A520M DS3H WF6E
Full model name GIGABYTE A520M DS3H WIFI6E
Micro ATX board format
Dimensions 244 × 244 mm
AMD Socket AM4 processor
AMD A520 chipset
Supported processors AMD Ryzen 3000, Ryzen 3000 G, Ryzen 4000 G, Ryzen 5000 and Ryzen 5000 G
Number of sockets memory 4
Memory type DDR4 DIMM
Maximum memory capacity 128 GB
Dual Channel memory architecture
Maximum memory clock Up to 4733 MHz after overclock
Support XMP memory profiles
ECC memory support Yes, ECC Unbuffered 1Rx8 and 2Rx8
Non-ECC memory support Yes
Main expansion slot 1x PCI Express 3.0 x16
Secondary expansion slot 1x PCI Express 3.0 x1
Number of M.2 connectors 1
Connector type M.2 Socket 3, M Key
Supported format M.2 2280
Disk interface M.2 SATA and PCIe 3.0 x4/x2
Number of SATA 4 ports
Standard SATA SATA 6 Gb/s
Supported RAID arrays RAID 0, RAID 1 and RAID 10
Wired network controller Realtek Gigabit Ethernet
Wired network speed 10/100/1000 Mb/s
Standard wireless network Wi-Fi 6E, IEEE 802.11ax
MediaTek MT7902 wireless network module
Supported Wi-Fi bands 2.4 GHz, 5 GHz and 6 GHz
Wi-Fi channel width Up to 160 MHz
Bluetooth 5.3
2 antenna connectors
WIFI antenna connection system EZ-Plug
Realtek High Definition Audio
Supported audio channels 2.0, 4.0, 5.1 and 7.1
DisplayPort 1.4 image output
DisplayPort maximum resolution 5120 × 2880 at 60 Hz
HDMI 2.1 image output
HDMI maximum resolution 4096 × 2160 @ 60 Hz
HDR Support Yes
HDCP 2.3 Support
USB 3.2 Gen 1 Ports on Rear Panel 4
USB 2.0 Ports on Rear Panel 4
Additional USB 3.2 Gen 1 via Internal Connector 2
Additional USB 2.0 via Internal Connector 2
PS/2 Port 1x classfan or mouse
Network connector 1x RJ-45
Board power connector 1x 24-pin ATX
CPU power connector 1x 8-pin ATX 12 V
CPU fan connector 1
System fan connector 1
Smart Fan 6 cooling control system
Fan stop function
Number of sensors temperatures 5
TPM connector Yes, internal
Clear CMOS jumper Yes
BIOS AMI UEFI, 128 Mbit memory
BIOS update function GIGABYTE Q-Flash
Supported operating systems Windows 11 64-bit and Windows 10 64-bit
Color Black and brown
